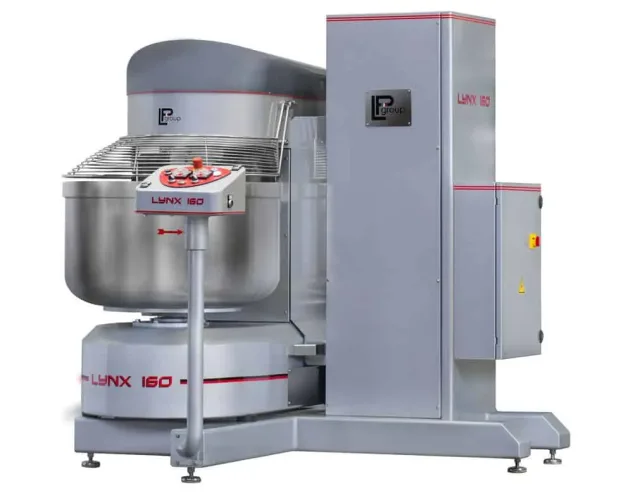

LP Group | LYNX-R Tilting Bowl Spiral Mixer

Combines the reinforced powerhouse design of the VIS-R spiral mixer with a side tilt bowl lift

LP Group focuses on engineering and manufacturing the highest quality spiral mixing equipment for bakeries around the globe. Their LYNX-R line combines the reinforced powerhouse design of the VIS-R spiral mixer with a side tilt bowl lift.

FEATURES

The LP Group LYNX-R removable bowl, spiral mixer includes the following standard features:

✓ Straight Breaking Bar
For enhanced durability and reliability.

✓ Dual Step Transmission
For added reliability and strength when processing stiffer doughs.

✓ Reinforced Motors
Two reinforced motors that power both the bowl and spiral.

✓ Belt Drive Train
Belt drive transmission for added reliability and strength.

✓ Suitable for Stiff Doughs
Capable of processing dough with low hydration levels.

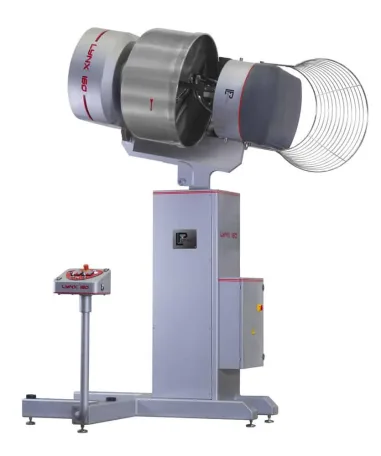

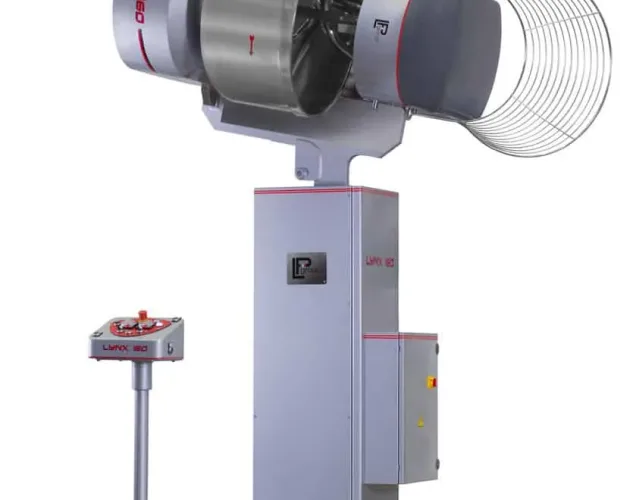

✓ Hydraulic Lift
Hydraulic Lift which can be ordered to lift either left or right, as well as either bench/table height (LYNX-B) or hopper/machine height (LYNX-T).

✓ Dual Safety Operation
Hydraulic lift is lowered via a dual safety button operation.

✓ Electromechanical Controls
Including the ability to control bowl rotation, jog, mixer speed, and timers. The mixer can also be used in manual, semi-automatic, and automatic modes. The hydraulic dough hook lift is also controlled via a dual safety button operation. Lastly, the control panel is located along the side of the machine for ease of access and maintenance.

✓ Bowl Rotation
Ability to reverse bowl rotation.

✓ Grated Bowl Cover
Stainless steel grate style bowl cover.

✓ Stainless Steel Construction
Designed for durability, ease of cleaning, and overall sanitation.

✓ Jog Button
Can be activated when in the lifted position to facilitate dough extraction.

AVAILABLE OPTIONS

The LP Group LYNX-R tilting bowl spiral mixer offers the following available options:

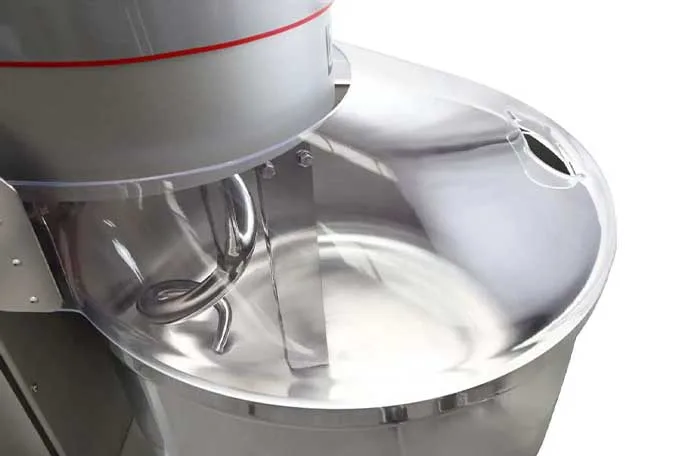

✚ Transparent Bowl Cover
A durable see-through cover made of clear acrylic (PMMA).

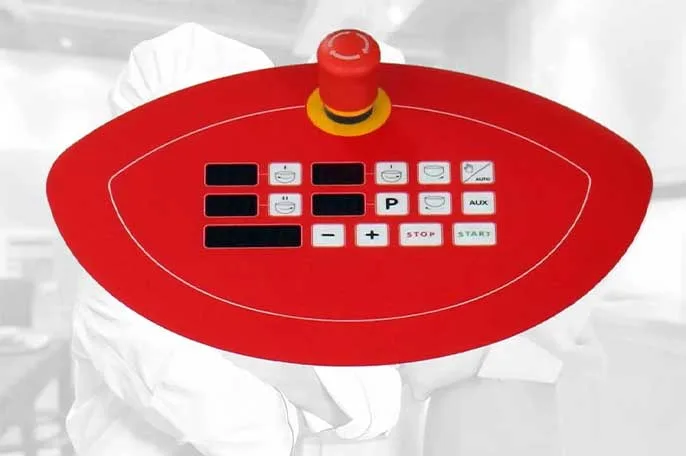

✚ Electronic Control Panel
In place of the standard electromechanical control panel, this also features an electronic bypass to avoid any service disruptions.

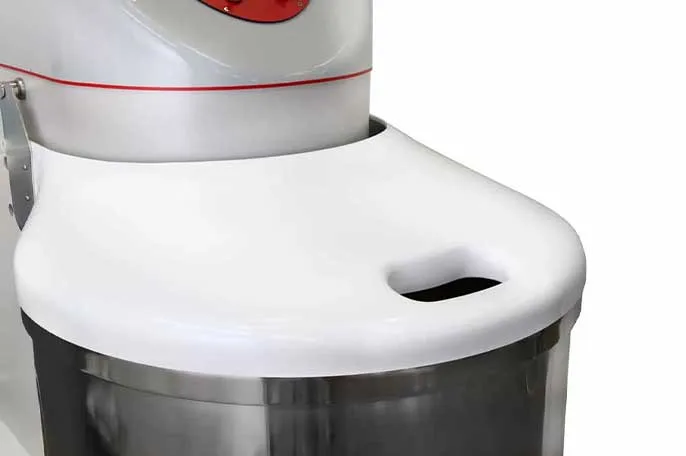

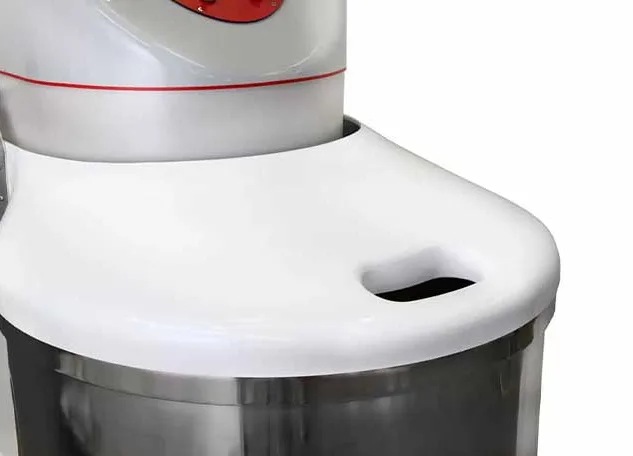

✚ ABS Plastic Bowl Cover
A non-see through, plastic bowl cover made of ABS plastic.

CONFIGURATION OPTIONS

The LYNX-R Tilting Bowl Spiral Mixers are available with the following directional and height configurations.

⇅ Left Tilt
Configure your model to tilt towards the left.

⇅ Right Tilt
Configure your model to tilt towards the right.

⇅ Table Height
Configure your machine to discharge product at table/workbench height (LYNX-B): 1400 mm | 55 1/4 in.

⇅ Hopper/Machine Height
Configure your machine to discharge product at hopper/machine level height (LYNX-T): 1900 mm | 75 in.

Electrical Specifications
LYNX-R 120 LYNX-R 160 LYNX-R 200 LYNX-R 250
Voltage 208V | 60HZ | 3PH 208V | 60HZ | 3PH 208V | 60HZ | 3PH 208V | 60HZ | 3PH
Bowl Power 0.55 kW 0.75 kW 0.75 kW 1.1 kW
Spiral Power* 3.7/6.2 kW 6/12 kW 6/12 kW 6/12 kW
Hydraulic Power 1.5 kW 1.5 kW 1.5 kW 1.5 kW
*Spiral Power indicated in both first and second speed options.
Table Plugin
Production Specifications
LYNX-R 120 LYNX-R 160 LYNX-R 200 LYNX-R 250
Dough Capacity
Maximum Dough Capacity 120 kg | 264 lb 160 kg | 352 lb 200 kg | 441 lb 250 kg | 551 lb
Minimum Dough Capacity 8 kg | 18 lb 10 kg | 22 lb 10 kg | 22 lb 12 kg | 27 lb
Bowl & Flour Capacity
Bowl Capacity 188 L | 50 gal. 266 L | 70 gal. 306 L | 80 gal. 378 L | 99 gal.
Maximum Flour Capacity 75 kg | 165 lb 100 kg | 220 lb 125 kg | 275 lb 150 kg | 330 lb
Table Plugin

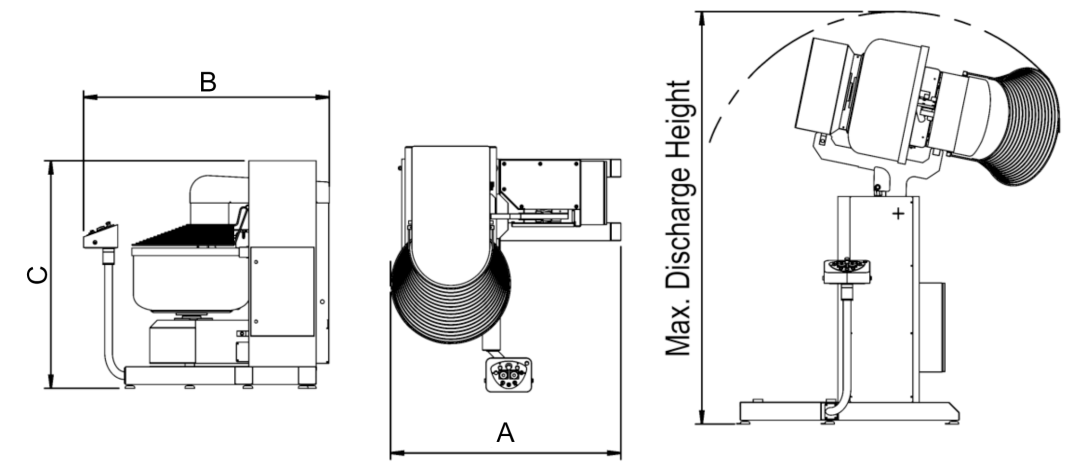

Dimensions & Weights
LYNX-R 120 LYNX-R 160 LYNX-R 200 LYNX-R 250
For LYNX-R B (Bench/Table Discharge Height)
Standard Dimensions (A x B x C) 69.5 x 72.5 x 59.5" 71 x 77 x 65" 71.5 x 77 x 65 73.5 x 78 x 65"
1760x 1840x 1510 mm 1800 x 1950 x 1650 mm 1815 x 1950 x 1650 mm 1865 x 1980 x 1650 mm
Max. Height (Tilted) 98.5" (2500 mm) 105.5" (2680 mm) 106.5" (2700 mm) 109.5 (2780 mm)
Net Weight 2392 lb (1085 kg) 2833 lb (1285 kg) 2855 lb (1295 kg) 2977 lb (1350 kg)
Shipping Dimensions (L x W x H) 79 x 77 x 71" 79 x 79 x 75" 79 x 79 x79" 79 x 79 x79"
200 x 195 x 180 cm 200 x 200 x 190 cm 200 x 200 x 200 cm 200 x 200 x 200 cm
Shipping Weight 2679 lb (1215 kg) 3098 lb (1405 kg) 3142 lb (1425 kg) 3252 lb (1475 kg)
For LYNX-R T (Machine/Hopper Discharge Height)
Standard Dimensions (A x B x C) 69.5 x 72.5 x 68.25" 71 x 77 x 68.25" 71.75 x 77 x 68.25" 73.75 x 78 x 68.25"
1760x 1840 x 1730 mm 1800 x 1950 x 1730 mm 1820 x 1950 x 1730 mm 1870 x 1980 x 1730 mm
Max. Height (Tilted) 120" (3050 mm) 126" (3200 mm) 124.75" (3240 mm) 130.5" (3310 mm)
Net Weight 2679 lb (1215 kg) 3120 lb (1415 kg) 3142 lb (1425 kg) 3252 lb (1475 kg)
Shipping Dimensions (L x W x H) 79 x 77 x 71" 79 x 79 x 79" 79 x 79 x79" 79 x 79 x79"
200 x 195 x 180 cm 200 x 200 x 200 cm 200 x 200 x 200 cm 200 x 200 x 200 cm
Shipping Weight 2966 lb (1345 kg) 3407 lb (1545 kg) 3429 lb (1555 kg) 3550 lb (1610 kg)
Table Plugin



MEDIA

1 Amazing Reinforced, Tilting Bowl Spiral Mixer

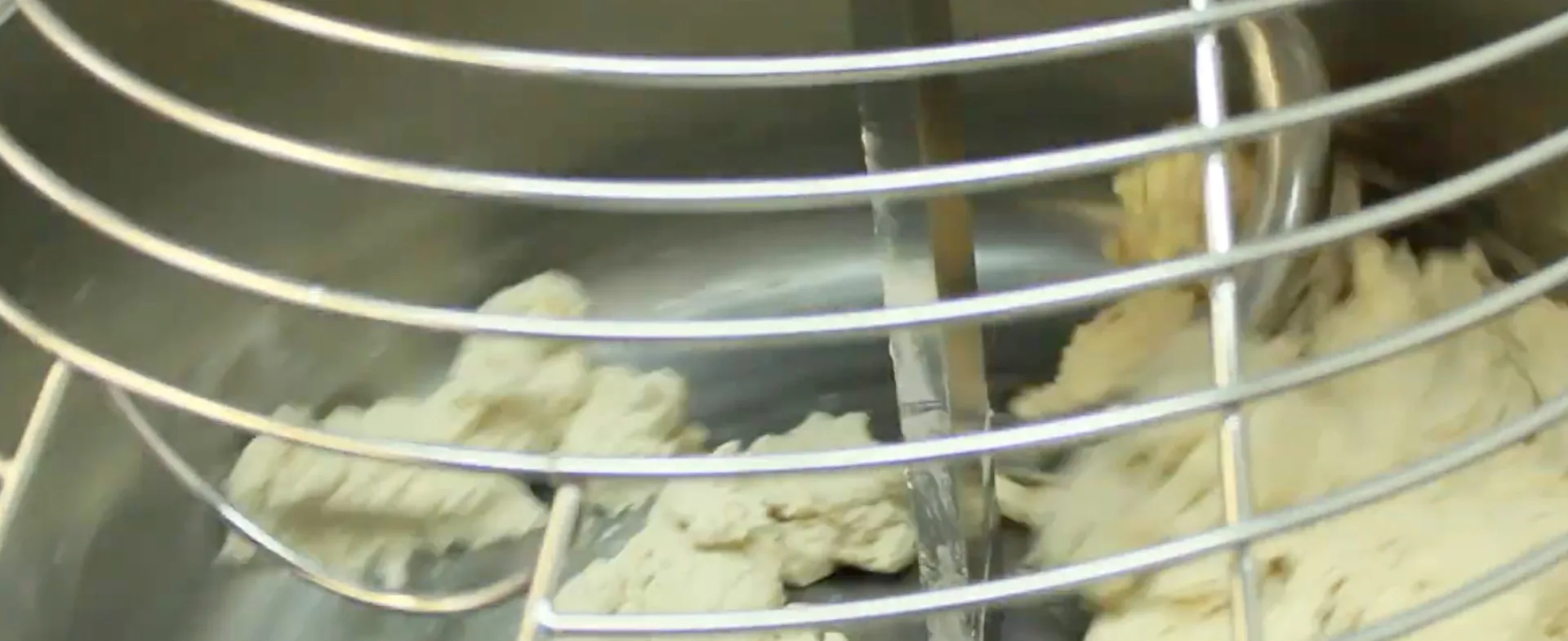

A reinforced, tilting bowl spiral mixer for suitable low hydration doughs such as bagel dough.
