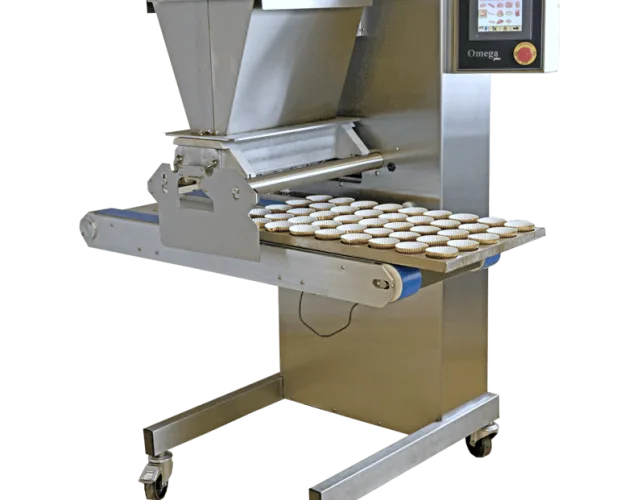

MONO | Omega Series

The Omega Series produces everything from macarons, cookies, eclairs, whirls, cakes, cupcakes, muffins and more!

Partner: Mono
Category: Depositors
Industry: Bakeries / Food Service
Production: Retail & Wholesale

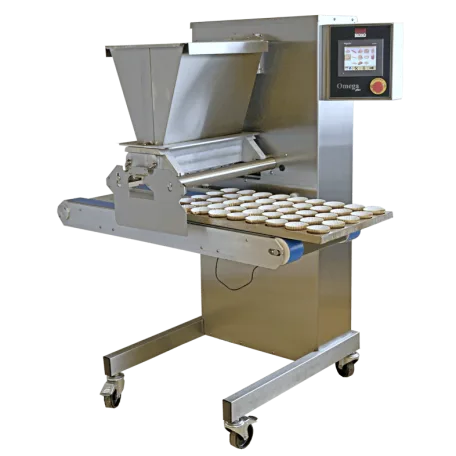

MONO is the longest established confectionery depositor manufacturer in the world. The Omega Series of Confectionery Depositors are among the most capable machines on the market, producing everything from macarons, cookies, eclairs, whirls, cakes, cupcakes, muffins and more!

Available in both Touch and Plus varieties, these finely built machines are imported from Europe and recognized by both bakers and chefs across the globe. The Omega Plus 450 can also be ordered with an available wire-cut feature, perfect for making hard dough cookies, both with and without particulates.

mono

FEATURES

The MONO Omega Series confectionery depositor includes the following standard features:

✓ Small Footprint
Designed to fit in most work environments.

✓ Quick and Easy Product, Template and Hopper Changeover
This innovative system helps reduce the amount of space required by the depositor.

✓ Safety Casters
Equipped with a safety locking mechanism, these casters provide enhanced mobility and stability.

✓ Store up to 650 Programs/Recipes
Store multiple production recipes for quick product recall and streamlined production processes when changing between products.

✓ Suitable for Both Soft and Hard Doughs
If processing mainly hard-doughs we recommend the Omega Plus series.

✓ Create Complex, Multi-Layer Products

✓ Fits Tray Sizes up to 450mm
Omega Touch 450 & Plus 450

✓ Fits Tray Sizes up to 600mm
Omega Plus 580

✓ Soft Dough Hopper
Comes standard with machine purchase.

✓ Extended Hopper Standard
MONO Omega Series Confectionery Depositors purchased through Erika comes with an extended hopper standard.

✓ Single Phase, “Plug-&-Play” Operation
Designed for immediate productivity, from the moment of installation.

✓ One Person Operation
Designed for quick and easy setup and operation by a single person.

✓ Pictograph, Tri-Color Touch Screen Controller
Enables simple and intuitive operation and programming via icon and graphics driven interaction.

✓ Stainless Steel Construction
Designed for durability, ease of cleaning and overall sanitation.

✓ Provides Total Control of Product Weight, Size, Height Length and Shape
Completely versatile, designed to streamline the production process.

AVAILABLE OPTIONS

The MONO Omega Series confectionery depositor offers the following available options:

✚ Accessories

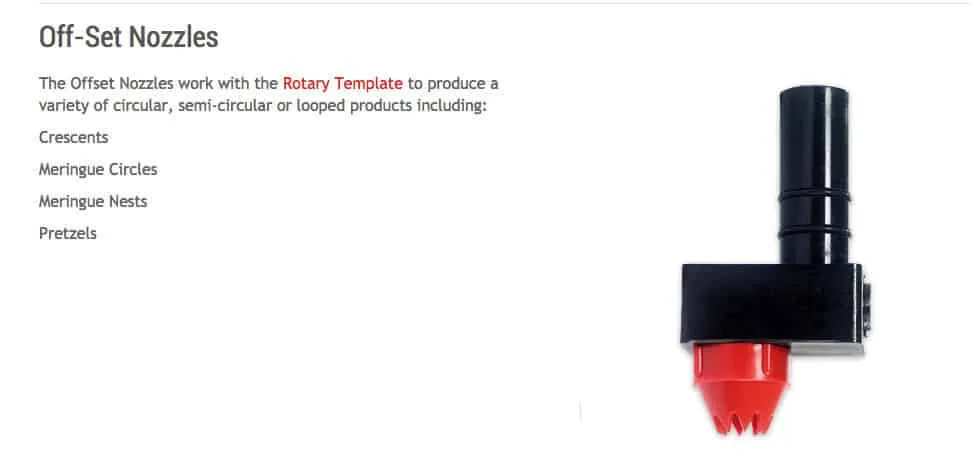

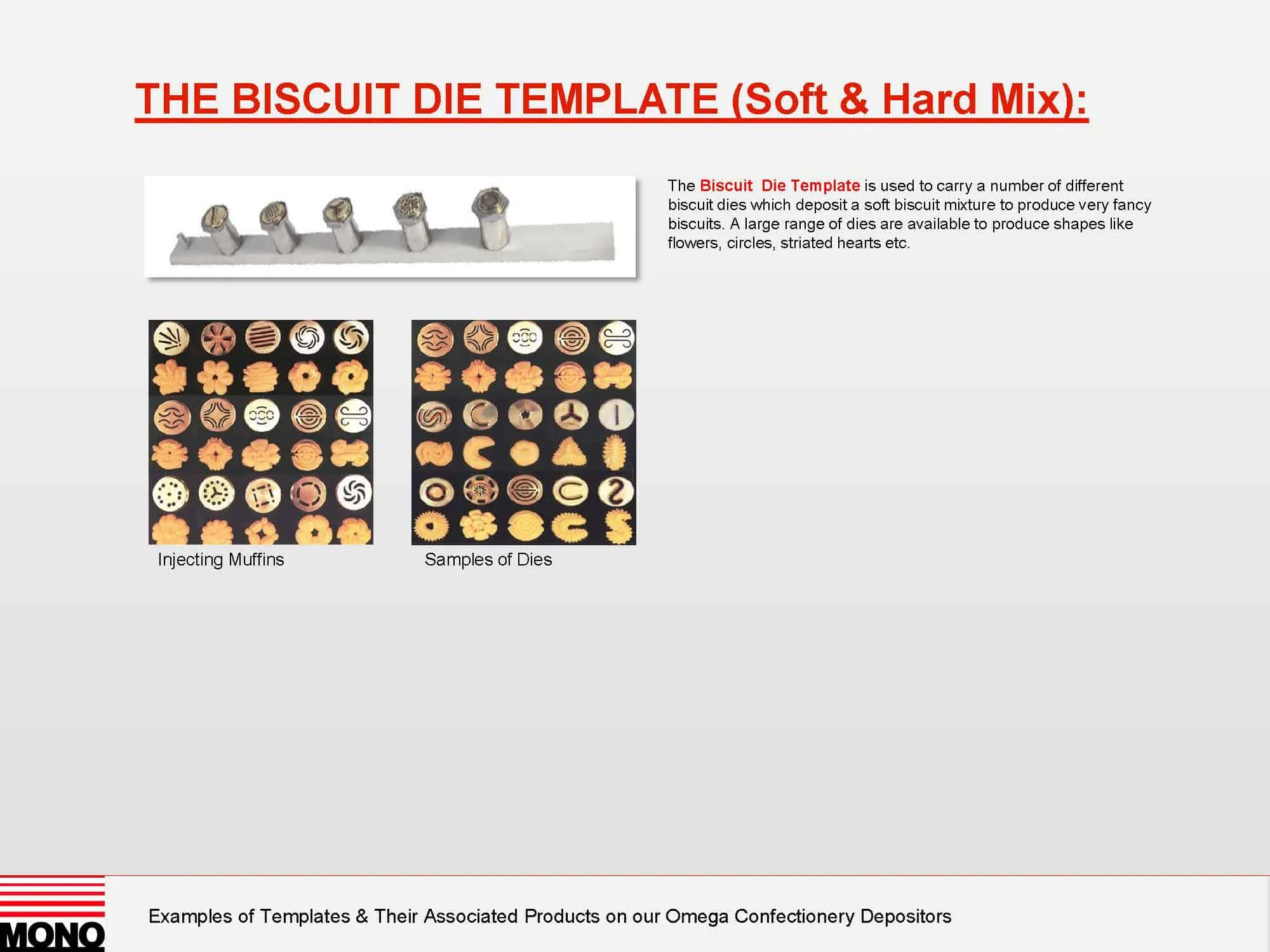

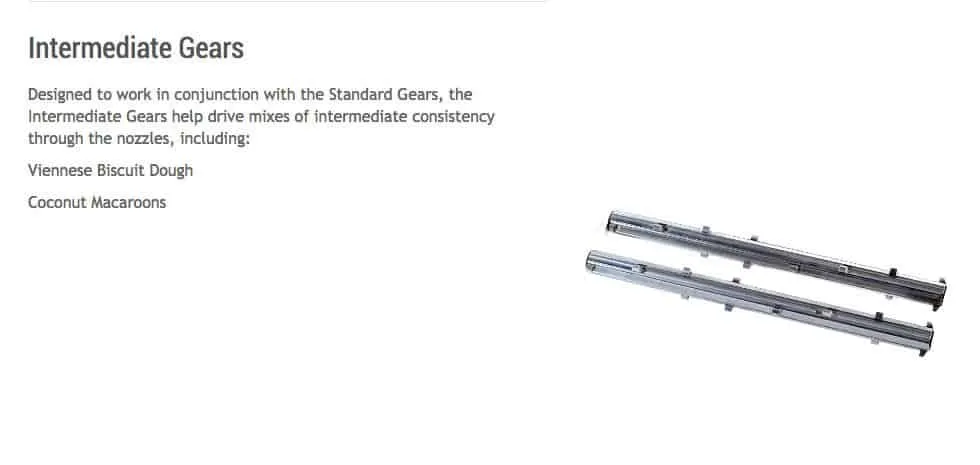

The Omega Series has a wide variety of available accessories. This includes templates, nozzles, biscuit dies, and trays. See “Accessories Gallery” below.

✚ Wire-Cut Capability
Available on the Omega Plus 450, designed to accurately cut through hard doughs and particulates to easily produce cookies and biscuits.

✚ ETL Certification

ELECTRICAL SPECS

Available in 110, 200, 230, or 240v Varieties
50 – 60Hz, 1ph, 2.5kW fused at 13amp maximum load, IP53 maximum – no isolator.

PRODUCTION RATE

19 cycles/minute
For the Omega Touch 450, dependent upon mix.

30 cycles/minute
For the Omega Plus 450 & 580, dependent upon mix.

PRODUCT TYPES
Table Plugin





The MONO Epsilon tabletop confectionery depositor is perfect for making the following product types:

Confections
Brownies, Butter Cookies, Choux Buns, Eclairs, Genoise, Lady Fingers, Macarons, Meringues, Muffins, Petits Fours, Sponge, Swiss Roll, Viennese

Cake
Angel Cake, Carrot Cake, Fairy Cake, Short Cake, Cupcakes

Shapes
Drops, Fingers/Strips, Sheets, Towers

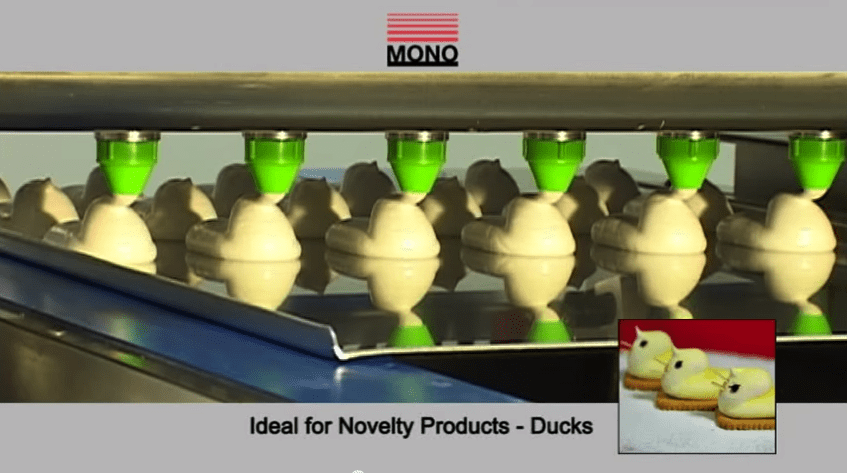

Novelty
Aliens, Christmas Trees, Snowmen

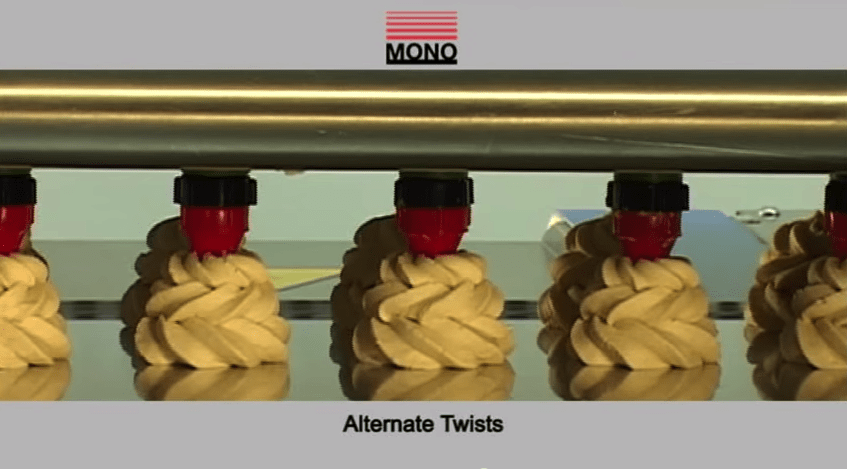

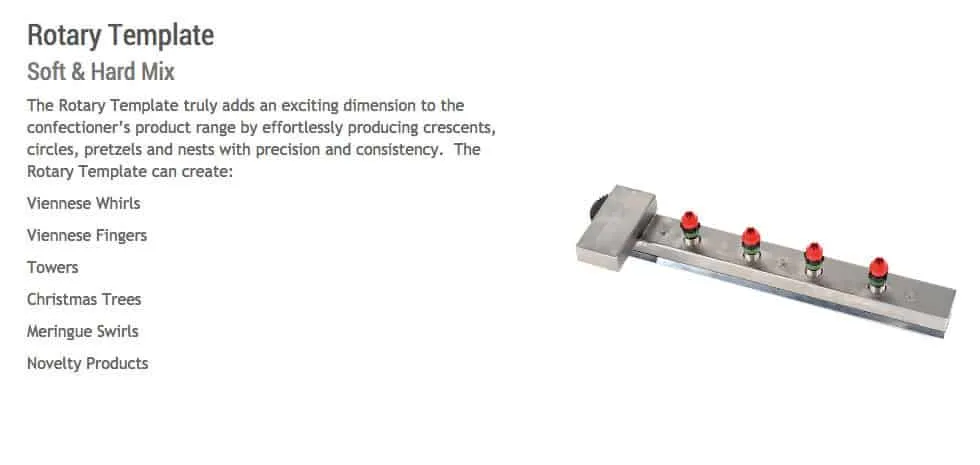

Rotary
Crescents, Pretzels, Nests, Rings, Whirls

Brass-Dies
Butter Cookies (Spritz Style)

Wire-Cut
Cookies with Particulates (Mini Chocolate Chip, Berries, Nuts, etc.)

TECHNICAL SPECIFICATIONS

Technical specifications for the MONO Omega Series confectionery depositor are as follows:

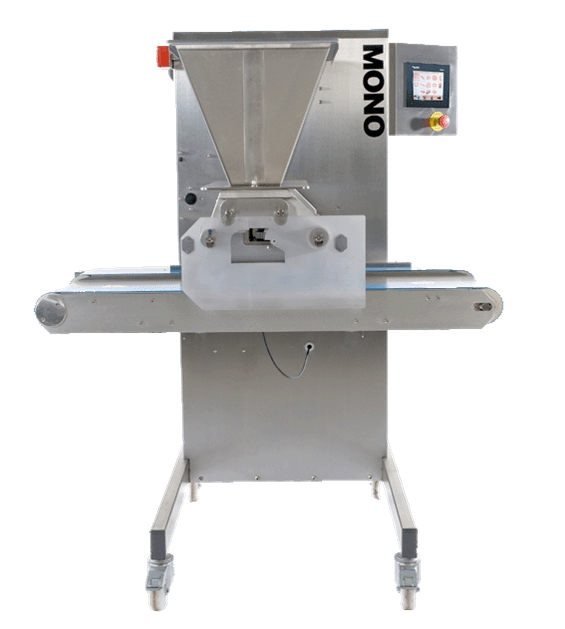

Omega Touch 450

Dimensions
L x W x H: 869 x 1200 x 1541mm | 34.25 x 47.25 x 60.75 in.

Machine Weight
With Soft Hopper: 192kg | 424 lbs., With Hard Hopper: 212kg | 467 lbs.

Extended Hopper Height
1,450mm | 57 in., With Lid Open: 1,980mm | 78 in.

Extended Hopper Capacity
Soft Dough:41L | 11 gal., Hard Dough: 35L | 9 1/4 gal.

Minimum Tray Distance
50mm | 2in.

Maximum Vertical Travel
80mm | 3in.

13 Languages
An assortment of 13 different languages to choose from.

Programs/Recipes
Capable of storing up to 650 different programmable recipes

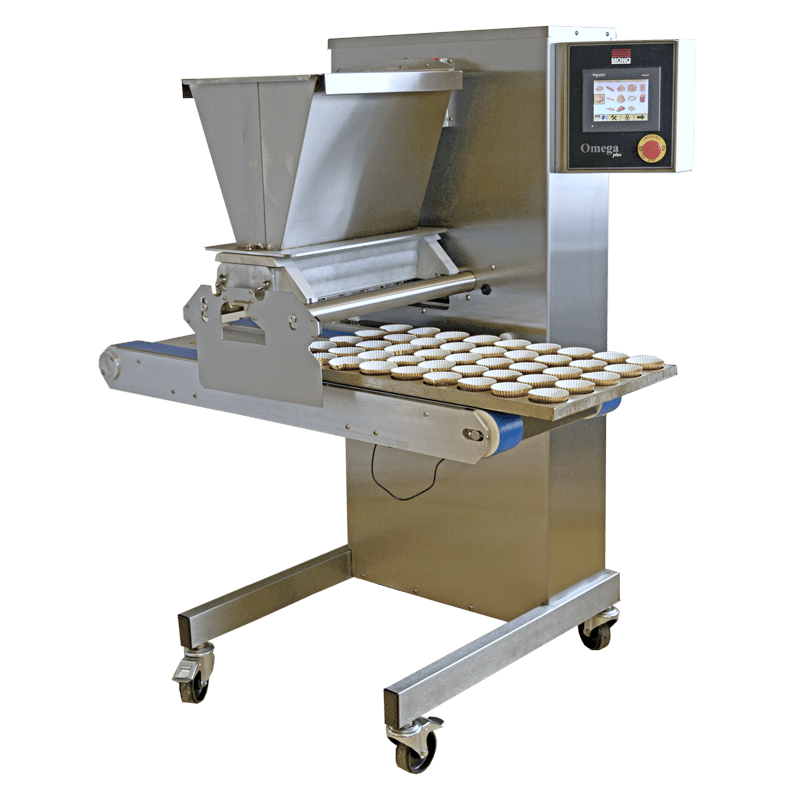

Omega Plus 450

Dimensions
L x W x H: 869 x 1200 x 1541mm | 34.25 x 47.25 x 60.75 in.

Machine Weight
With Soft Hopper: 192kg | 424 lbs., With Hard Hopper: 212kg | 467 lbs

Extended Hopper Height
1,450mm | 57 in., With Lid Open: 1,980mm | 78 in.

Extended Hopper Capacity
Soft Dough:41L | 11 gal., Hard Dough: 35L | 9 1/4 gal.

Minimum Tray Distance
50mm | 2in.

Maximum Vertical Travel
80mm | 3in.

16 Languages
An assortment of 16 different languages to choose from.

Programs/Recipes
Capable of storing up to 650 different programmable recipes

Omega Plus 580

Dimensions
L x W x H: 999 x 1200 x 1541mm | 39.33 x 47.25 x 60.75 in.

Machine Weight
With Soft Hopper: 200kg | 441 lbs., With Hard Hopper: 235kg | 518 lbs.

Extended Hopper Height
1,450mm | 57 in., With Lid Open: 2,110mm | 83 in.

Extended Hopper Capacity
Soft Dough:53L | 14 gal., Hard Dough: 45L | 12 gal.

Minimum Tray Distance:
50mm | 2in.

Maximum Vertical Travel
80mm | 3in.

16 Languages
An assortment of 16 different languages to choose from.

Programs/Recipes
Capable of storing up to 650 different programmable recipes

ACCESSORIES

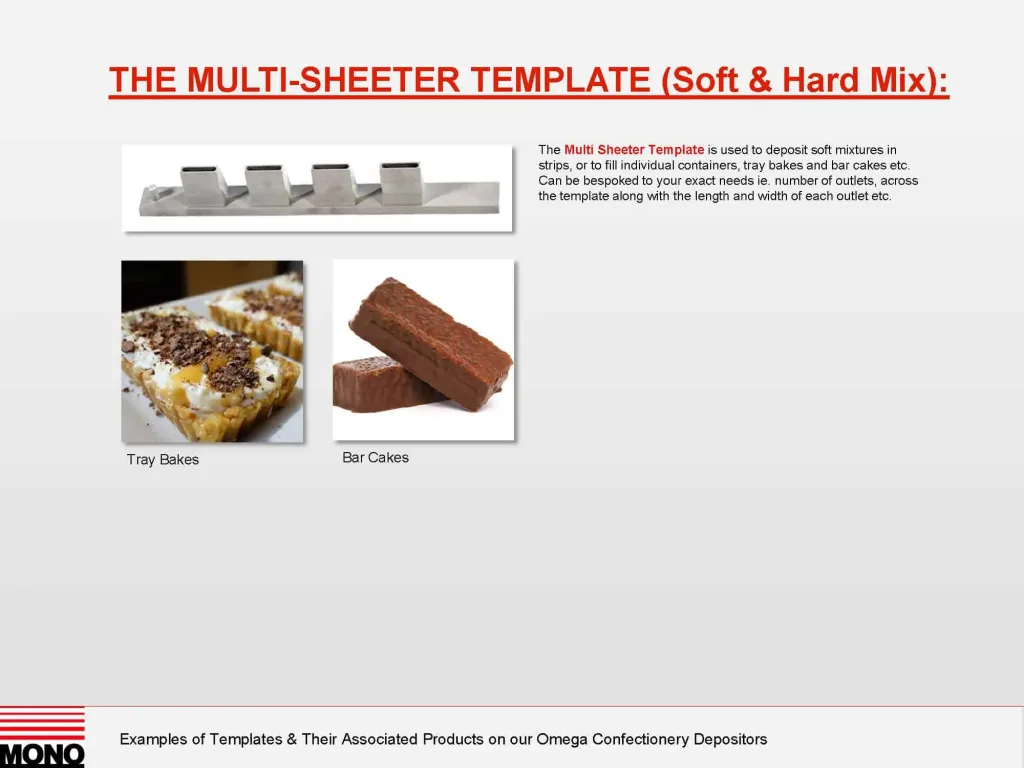

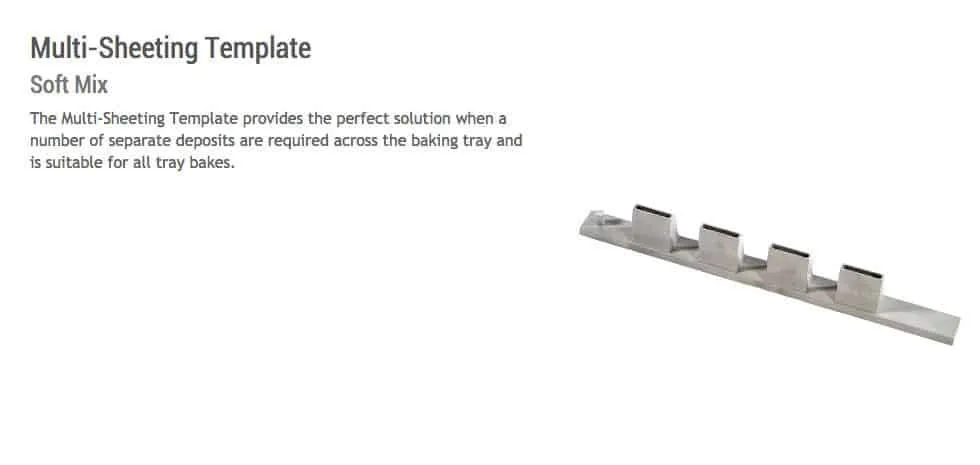

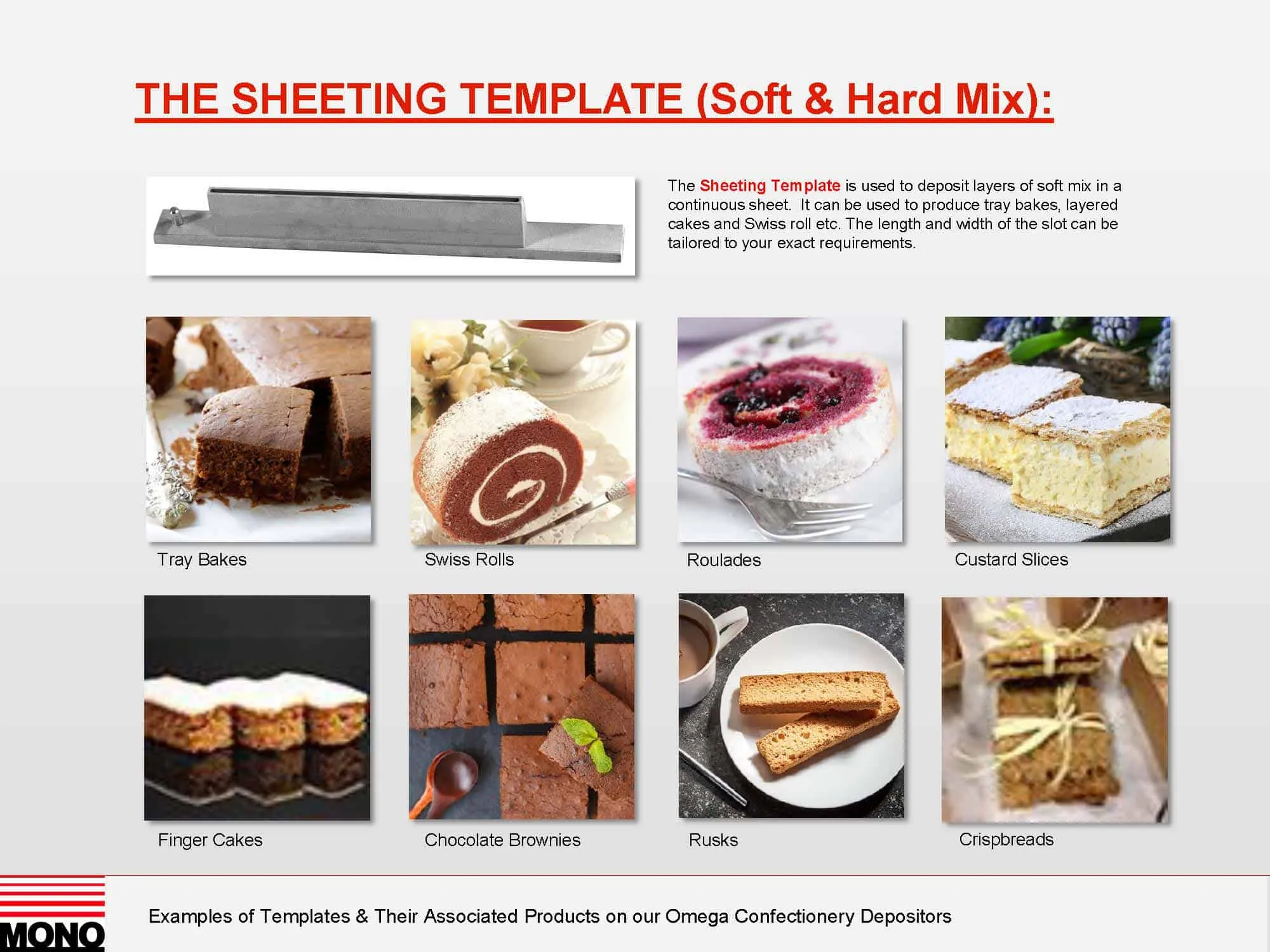

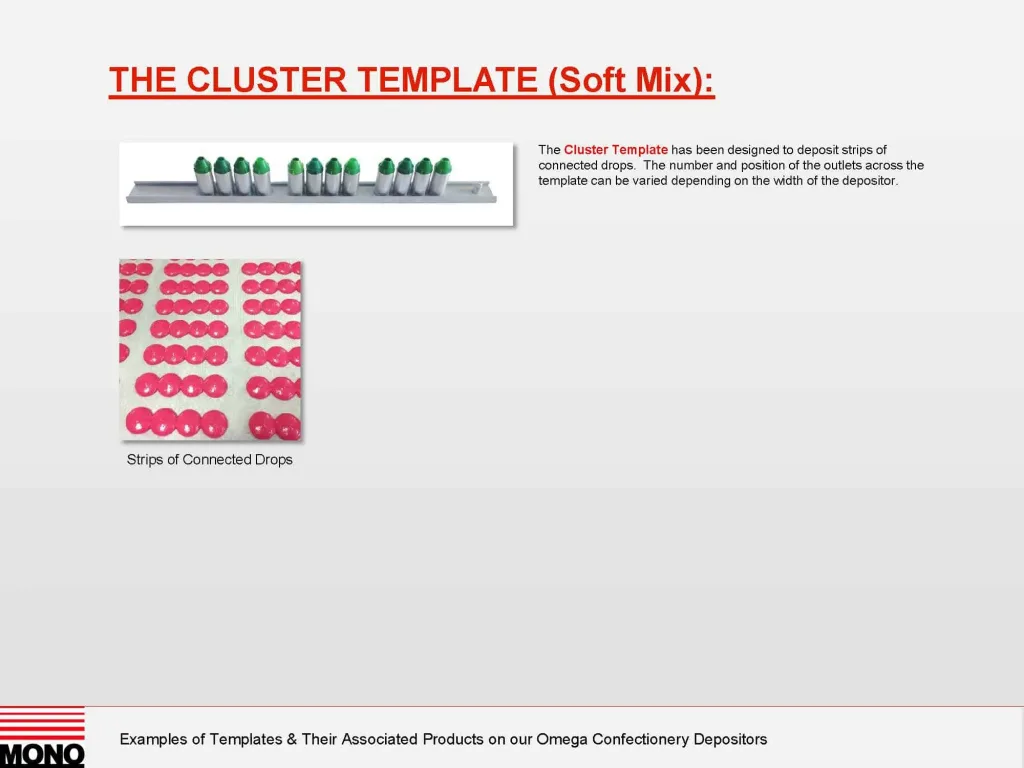

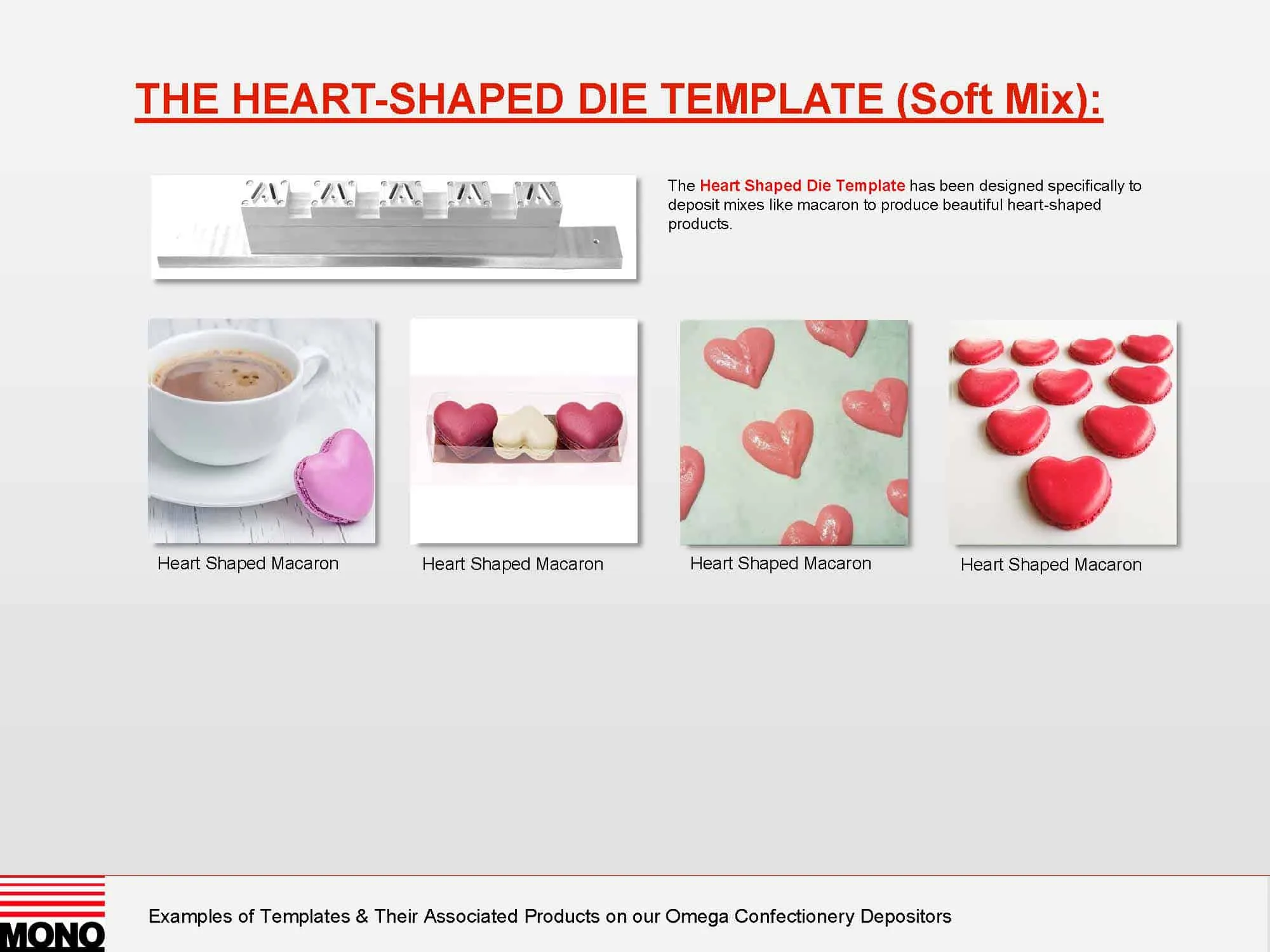

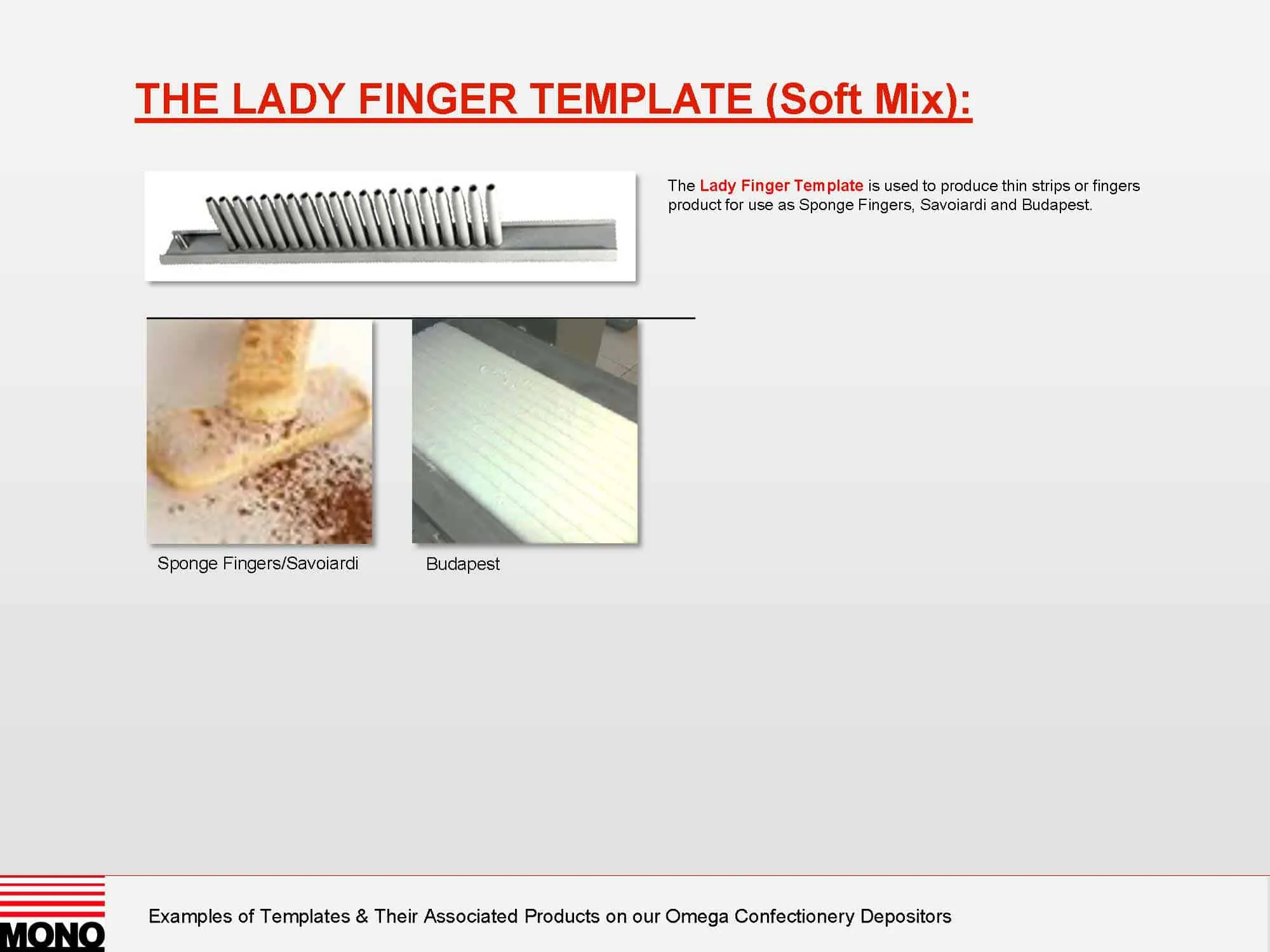

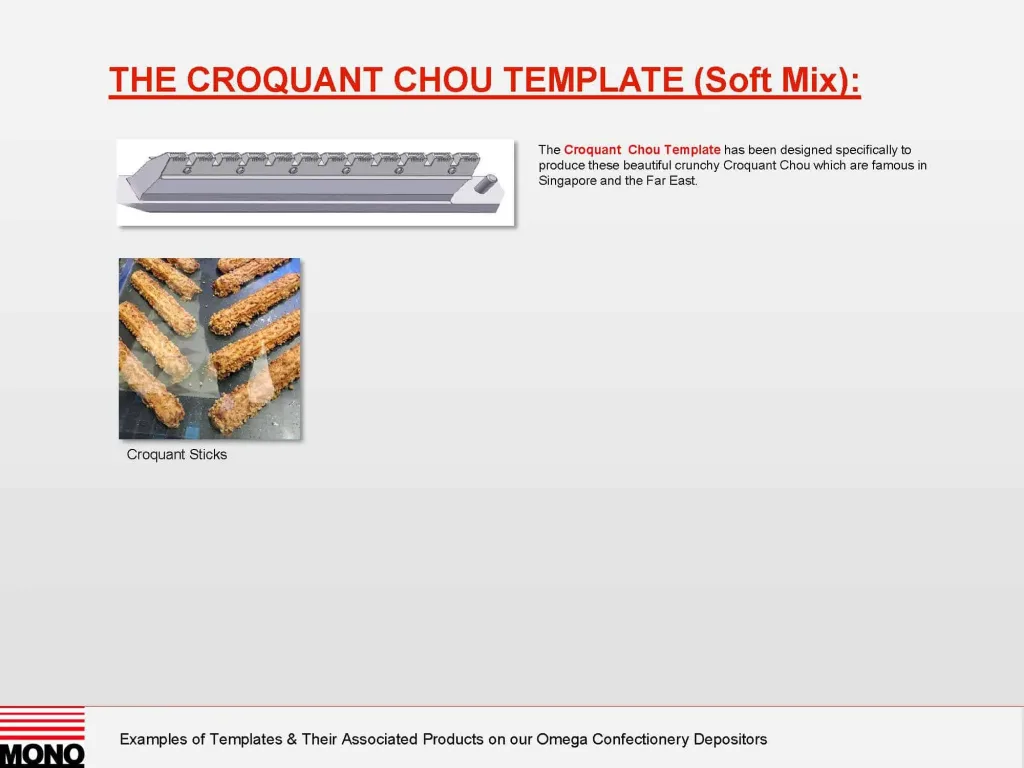

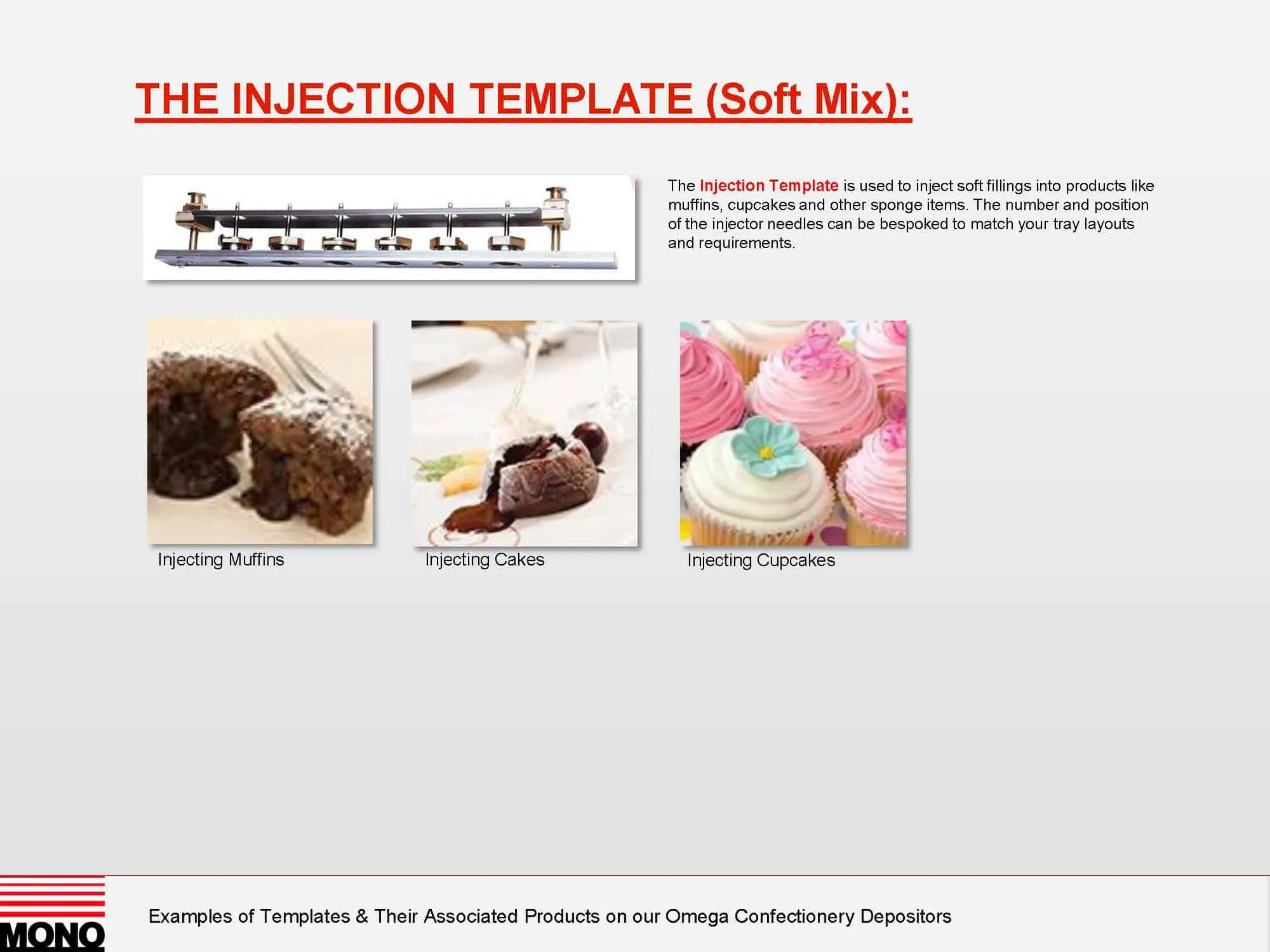

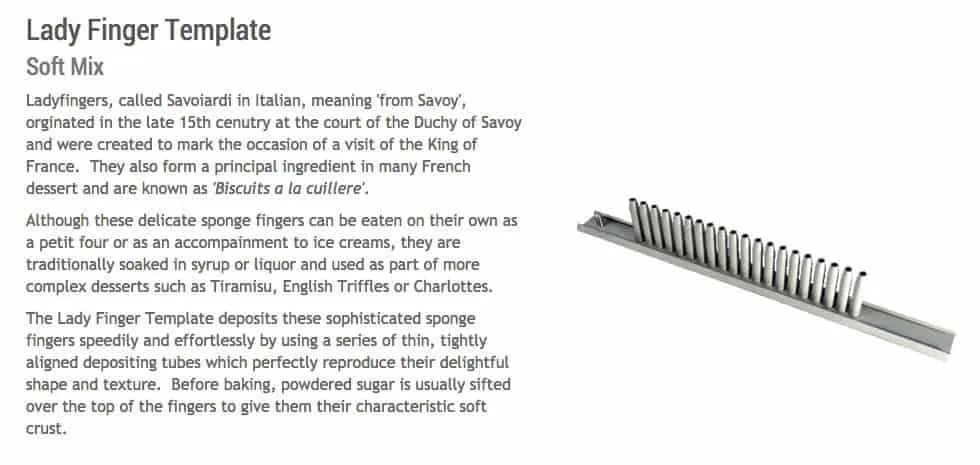

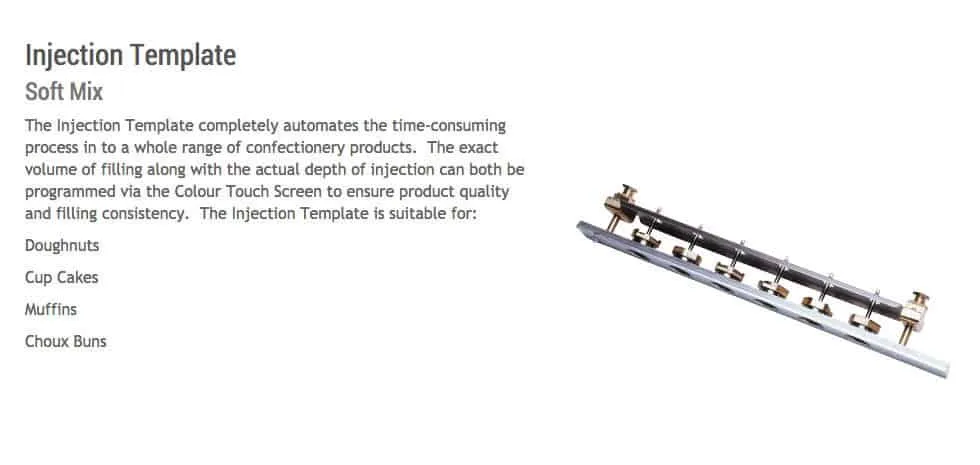

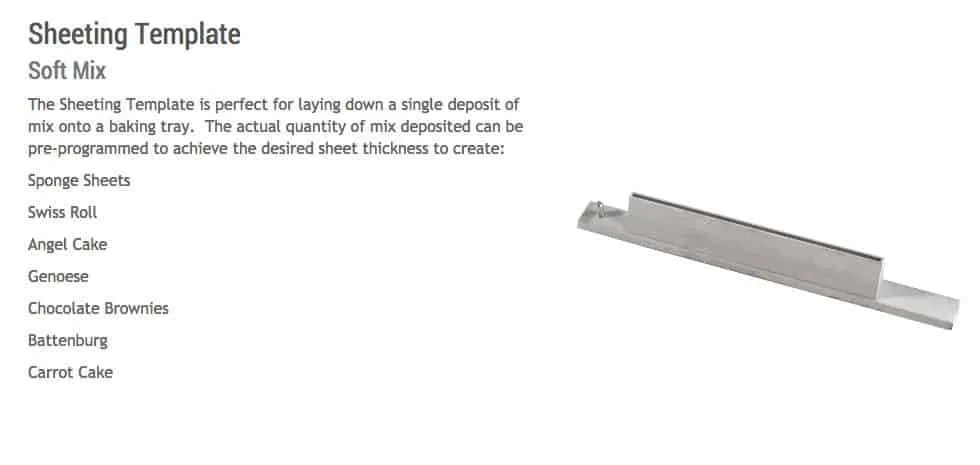

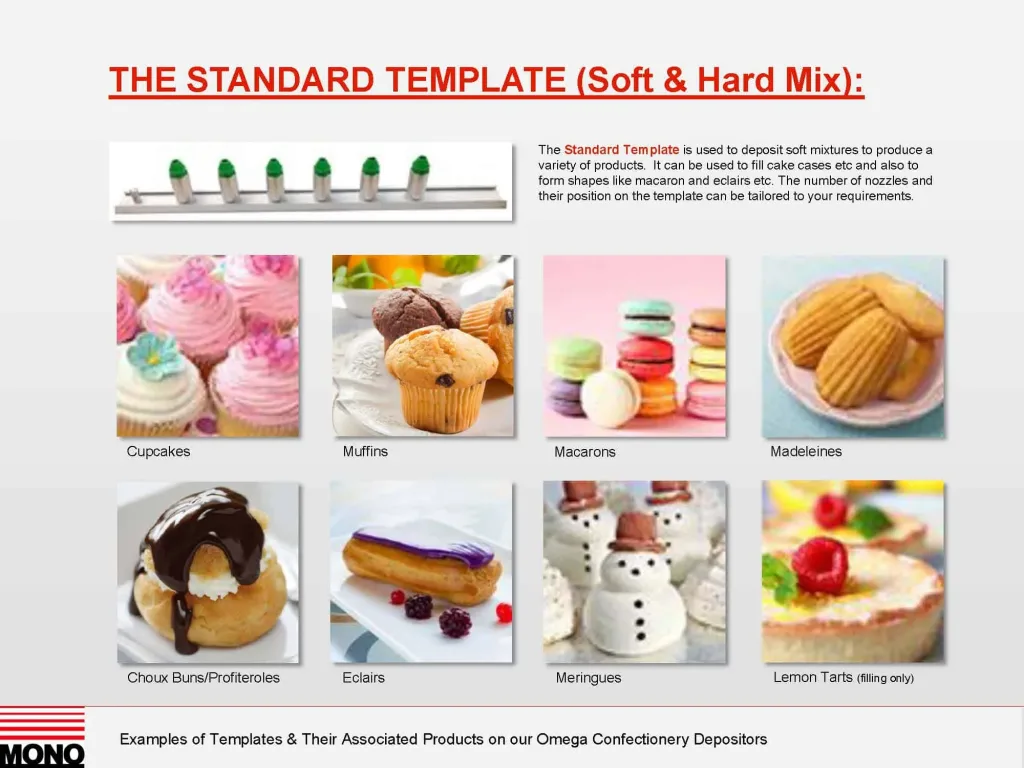

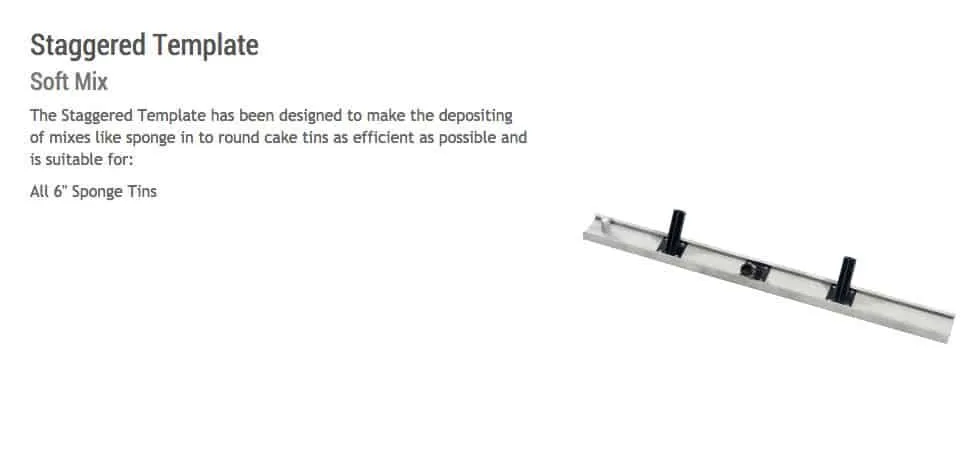

TEMPLATES OVERVIEW

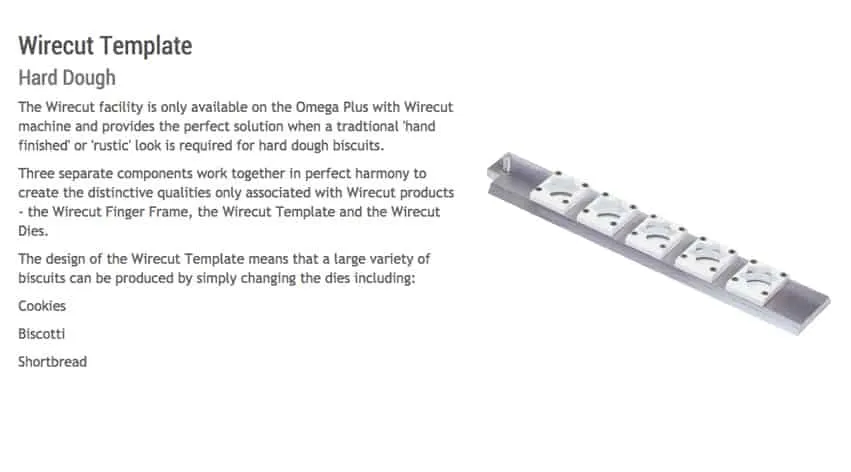

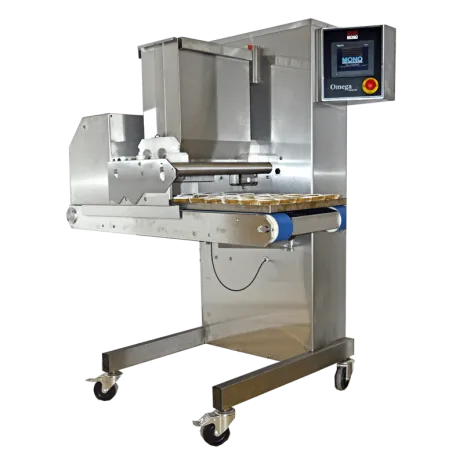

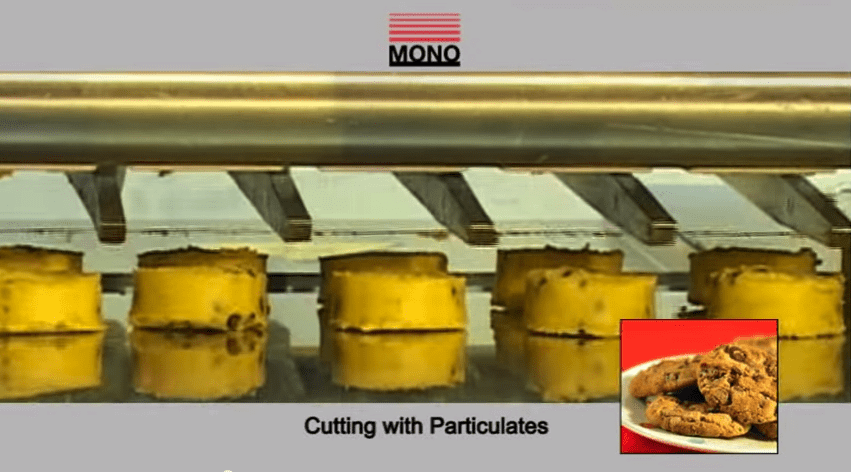

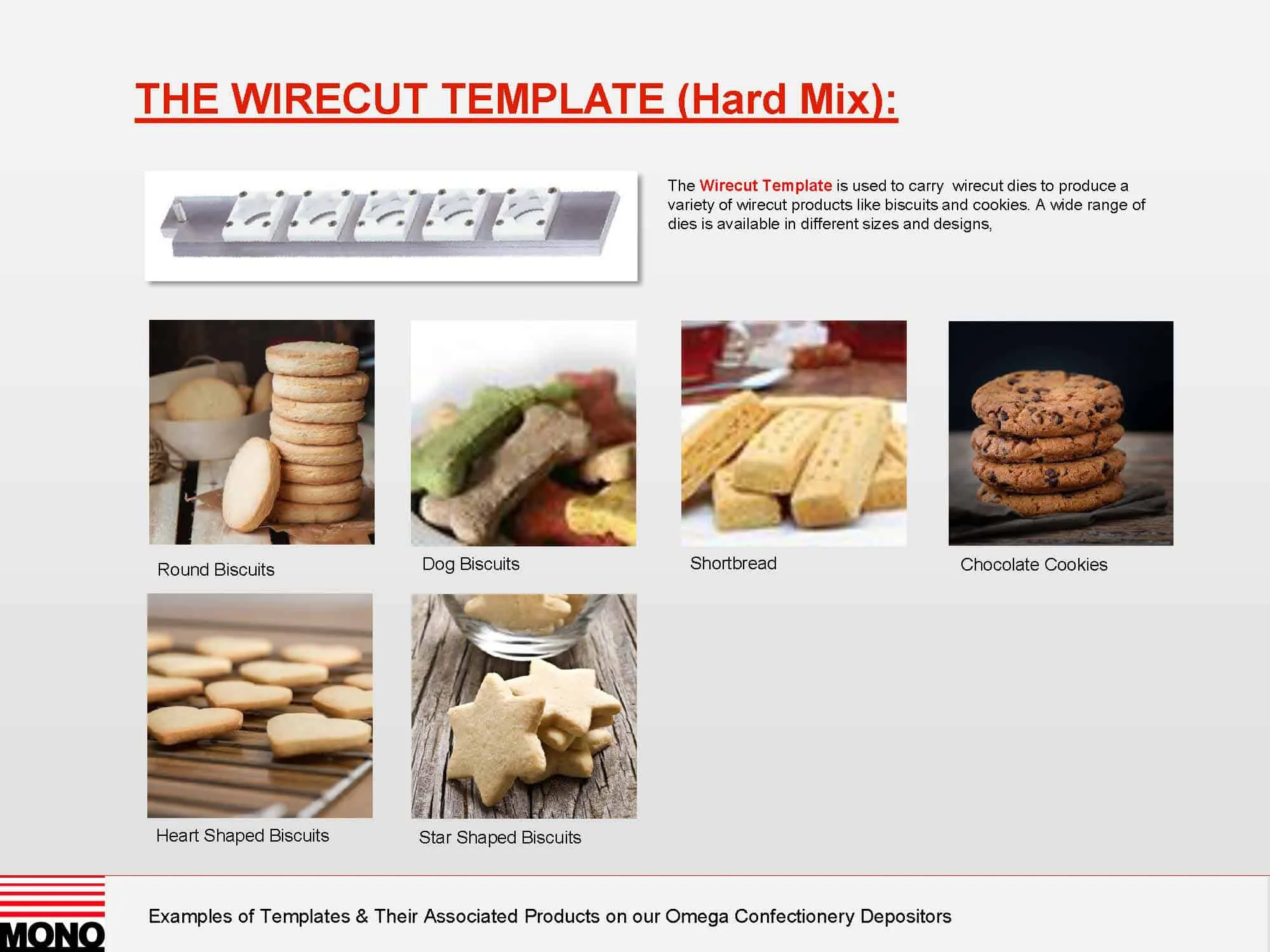

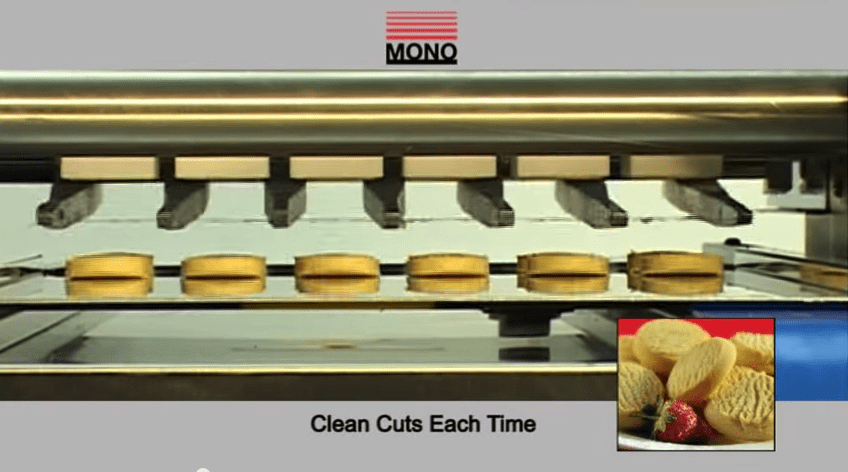

THE OMEGA PLUS 450 WITH WIRE-CUT

The Omega Plus 450 can also be equipped with an available wire-cut option. This wire-cut option for the Omega Plus 450 enables you to produce cookies with or without particulates and maximizes your investment by creating a truly versatile machine.

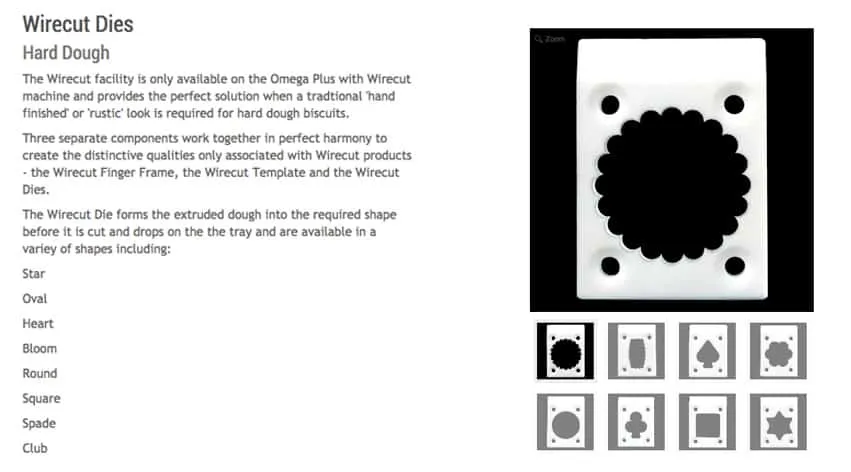

The wire-cut option works in conjunction with available wire-cut dies to produce everything from standard round cookies to novelty shaped products. Please note, the wire-cut option is not an after market accessory and must be specified during your original purchase order.

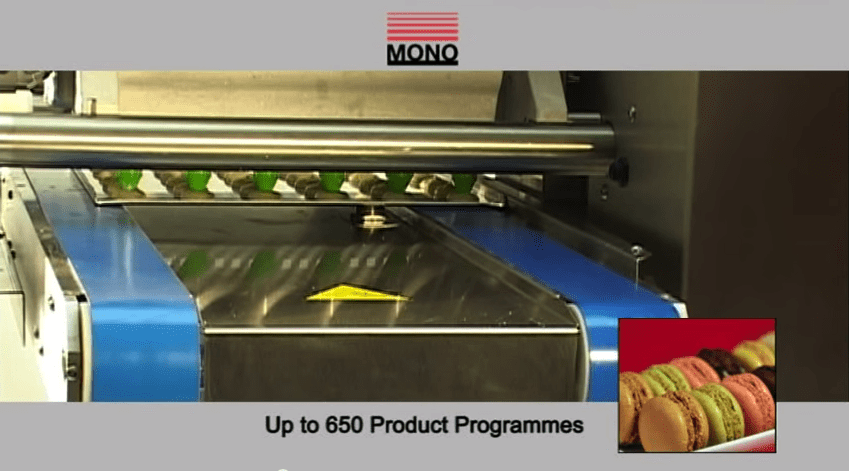

MEDIA

1 Amazing Confectionery Depositor

An industry leading confectionery depositor with a wide variety of available accessories.

650 Programmable Recipes  |  16 Different Languages  |  30 Cycles/Minute
