Bowl lift with available left, right, or dual side discharge configurations.
Partner: LP Group
Category: Mixers
Industry: Bakeries / Food Service
Production: Wholesale

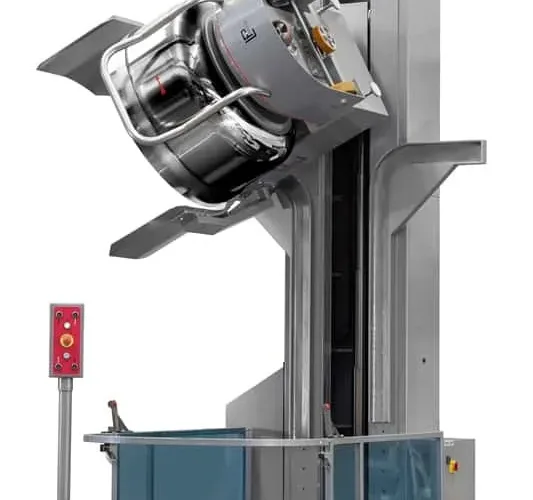

LP Group focuses on engineering and manufacturing the highest quality spiral mixing equipment for bakeries around the globe. The Ares Bowl Lift features a side tilt discharge system designed for use with LUX bowl trolleys.
The LP Group Ares side discharge bowl lift includes the following standard features:

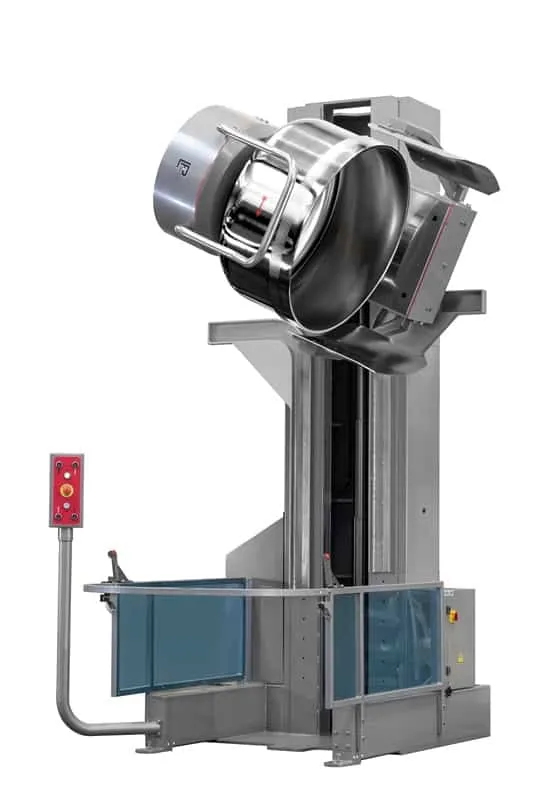

✓ Side Tilt Discharge
Choose from either a left or right tilt discharge.
✓ Compatible with LUX Series Bowls
This lift is compatible with LUX Series Bowl Trollies including LUX-R 80, 120, 160, 200, & 280 varieties.
✓ Hydraulic Lift
Bowl is lowered and raised via a hydraulic lift.
✓ Stainless Steel Construction
Designed for durability, ease of cleaning and overall sanitation. Also equipped with stabilizing feet designed to help anchor the machine to the ground.
✓ Electromechanical Controls
Includes ability to control bowl rotation for easier discharge. The control panel is located along the side of the machine for ease of access and maintenance.
The LP Group Ares side discharge bowl lift is available with the following directional and height configurations:
⇅ ARES-1 Left
Designed for discharge on the left-hand side available in both 1400mm (ARES-B) and 1900mm (ARES-T) heights.
⇅ ARES-1 Right
Designed for discharge on the right-hand side available in both 1400mm (ARES-B) and 1900mm (ARES-T) heights.
⇅ ARES-2 Dual Sides
Be able to discharge product from either the left or right side.
⇅ ARES-B
Designed to discharge at bench/table height of 55 1/4 in | 1400 mm
⇅ ARES-T
Designed to discharge at hopper/machine height of 74.75 in | 1900 mm
| ARES-B | ARES-T | |
|---|---|---|
| Technical Specifications | ||
| Electrical | 208V | 60 Hz | 3 ph | |
| Hydraulic Power | 1.5 kW | |
| Discharge Height | 55.25" | 1400 mm | 59 - 74.75" | 1500 - 1800 mm |
| Bowl Compatibility | LUX-R Bowls (80, 120, 160, 200, & 300) | |
| Standard Dimensions | ||
| Standard Dimensions (D x B x A) | 94.5 x 61.5 x 109" | 94.5 x 61.5 x 129.25" |
| 2400 x 1560 x 2765 mm | 2400 x 1560 x 3280 mm | |
| Net Weight | 3418 lb. | 1550 kg | |
| Shipping Dimensions | ||
| Shipping Dimensions (L x W x H) | 94.5 x 75 x 89.5" | |
| 240 x 190 x 227 cm | ||
| Shipping Weight | 3792 lb. | 1720 kg |
