KRUMBEIN | HGS Industrial Cake Slabber & Horizontal Slicer Complete Cut Into Baked Products

The KRUMBEIN HGS industrial cake slabber and horizontal bakery slicer includes the following standard features:

✓ Gentle Slicing
Achieved via synchronization of the upper and lower belts.

✓ Compact Design
Conveyor belt is able to fold to conserve space when not in use.

✓ KR Blade System

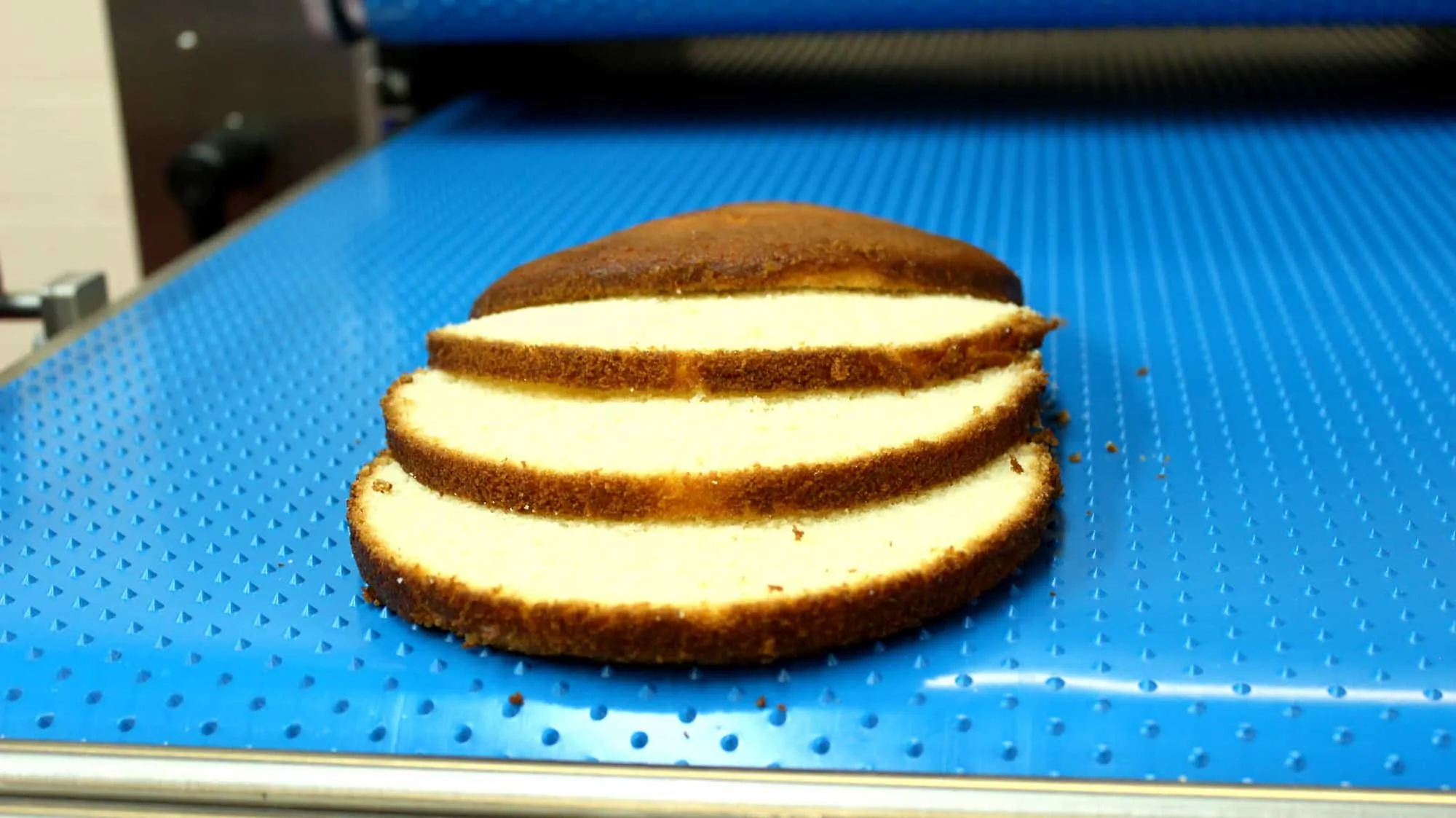

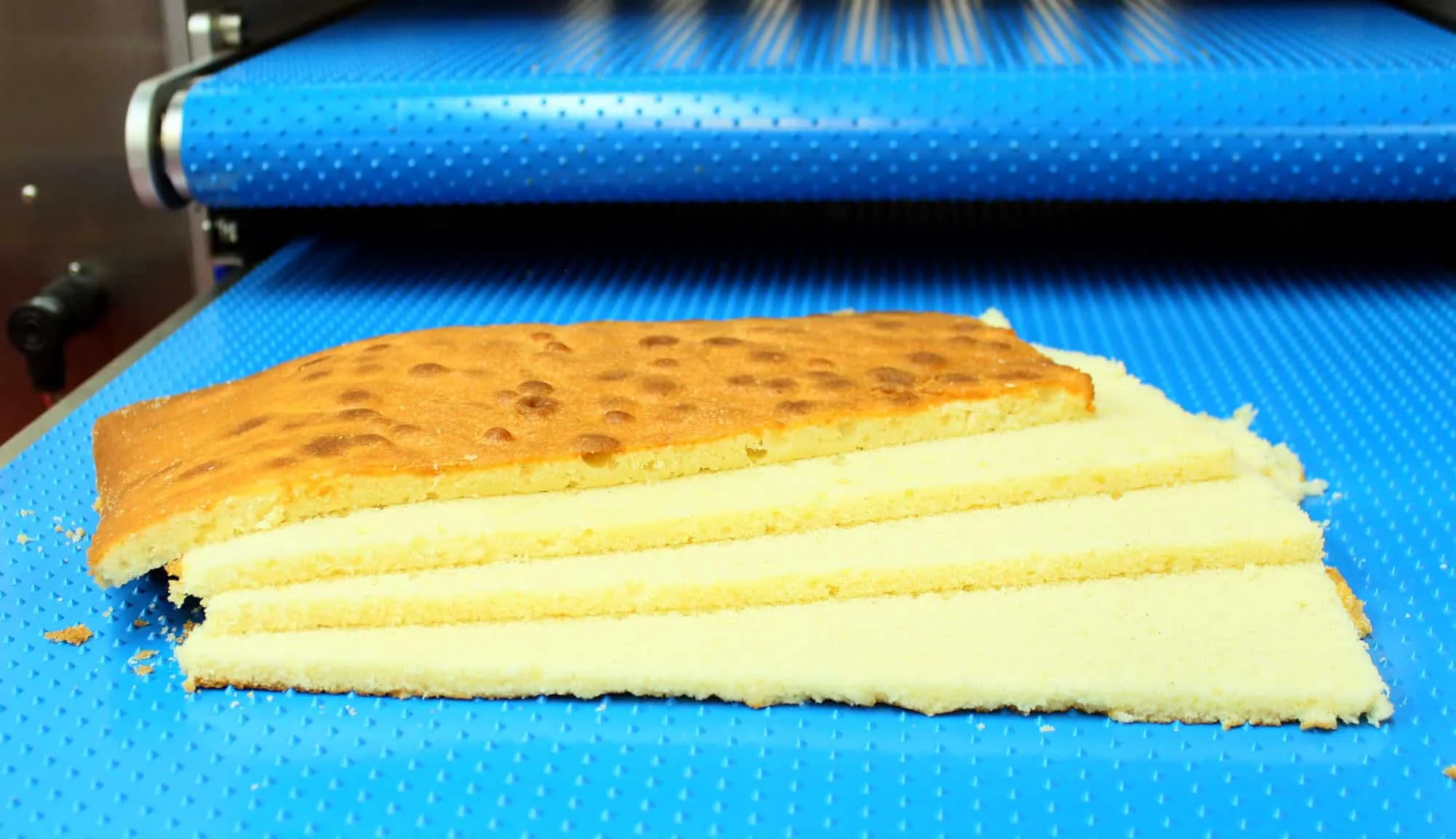

Designed to slice fresh baked products via a reciprocating motion, providing a perfect cut every time. This machine can slice product into two or more layers.

✓ Portability
Equipped with casters/wheels for enhanced mobility.

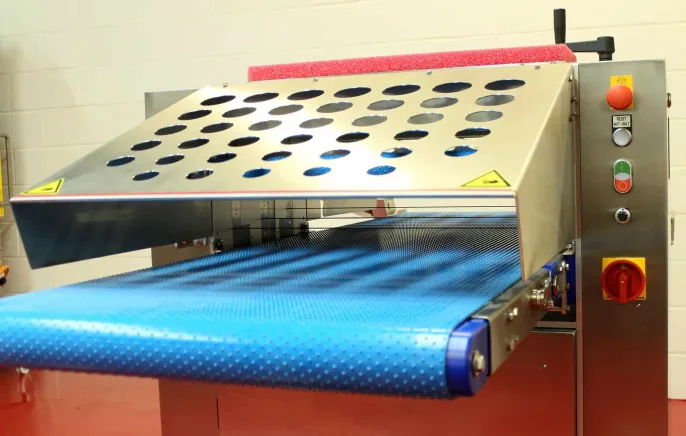

✓ Safety Guards
The slicing area is enclosed in a protective casing for safe operation.

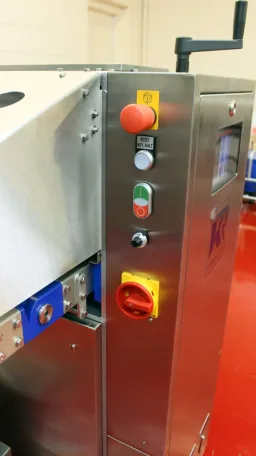

✓ Variable Controls
Individually controllable cut speed, cut depth, blade height, and belt height settings.

✓ Manufactured with food grade materials

The KRUMBEIN HGS industrial cake slabber and horizontal bakery slicer offers the following available options:

✚ Wave Top Belt
Designed for baked goods with variable heights, ensures stability by providing extra grip on the product being sliced.

✚ Teflon Coated Blades

✚ Additional Blade Options
Configure your machine with up to 5 blades, enabling you to slice your products with up to six layers.

✚ Computerized System
Configure your machines settings through a programmable touchscreen interface.

Operation procedures for the KRUMBEIN HGS industrial cake slabber and horizontal bakery slicer are as follows:

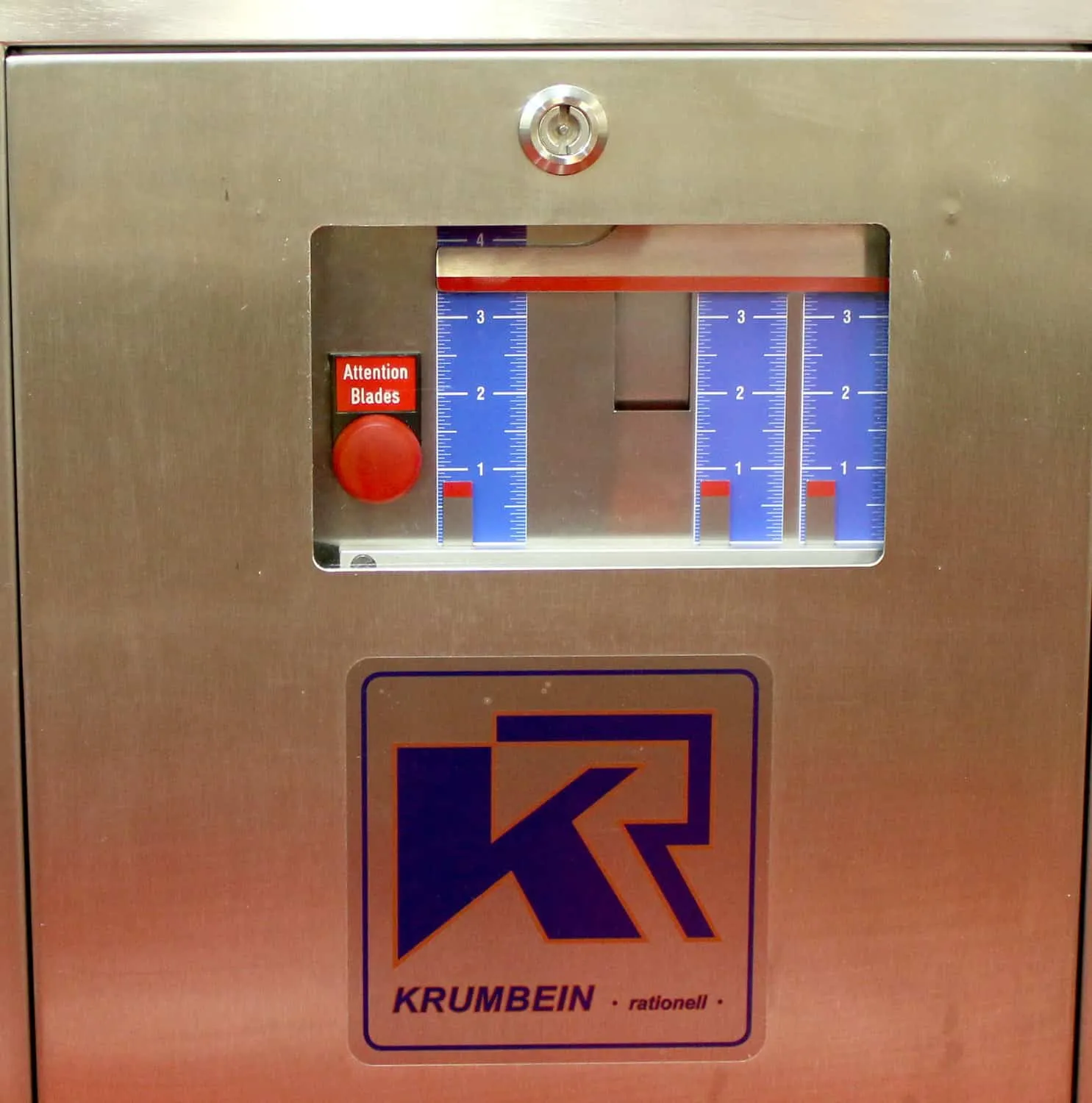

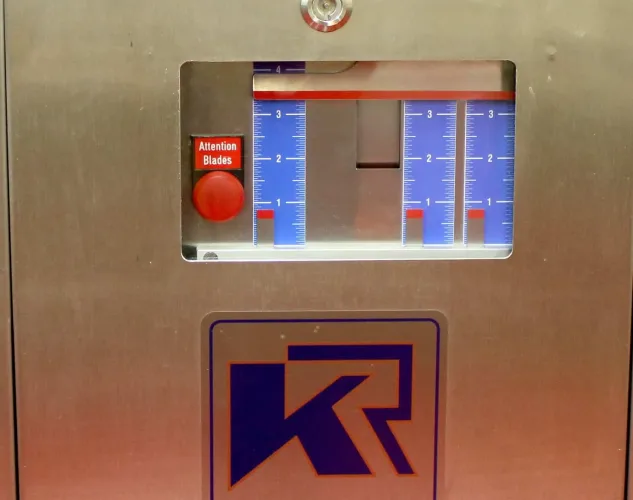

Adjustable Blade Height
Hand wheel controlled, blade height is indicated via the blade height scale.

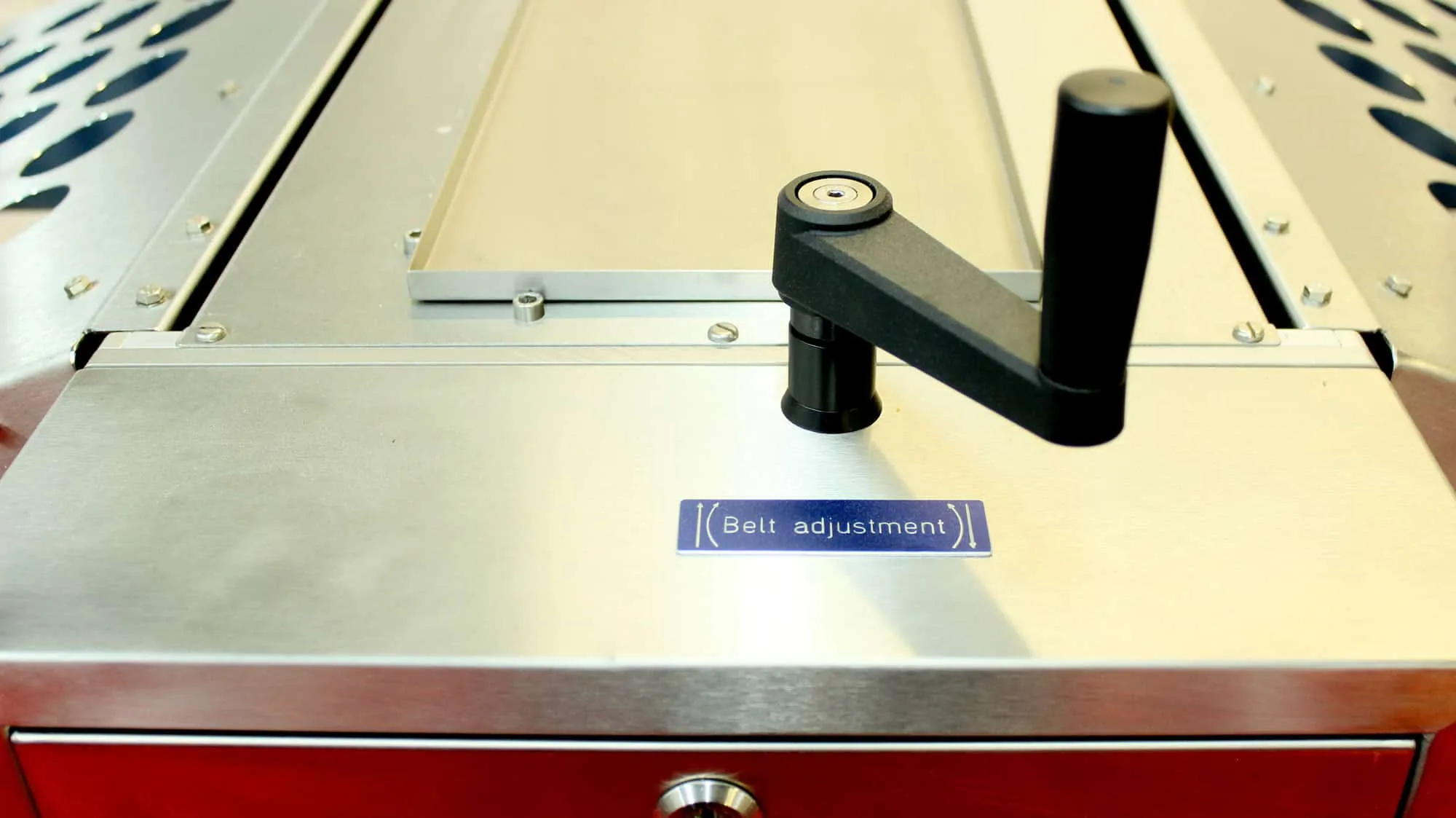

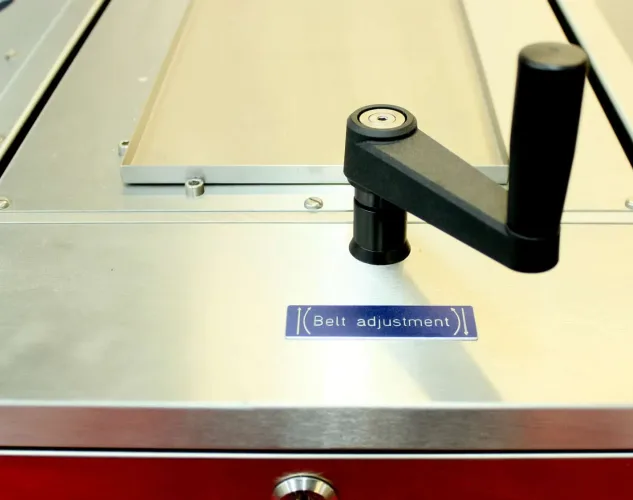

Adjustable Upper Belt
Hand wheel controlled, upper belt height is indicated via the upper belt height scale.

Conveyor Feeding

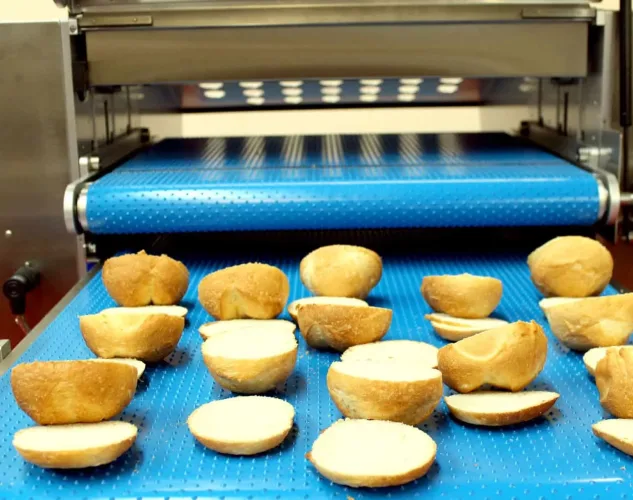

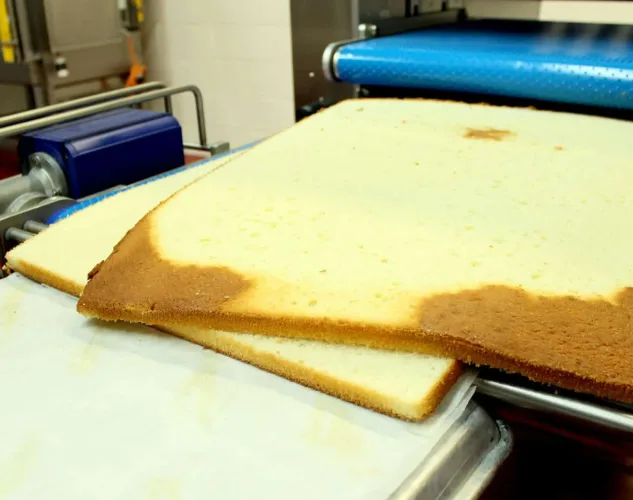

Slicing is executed via a put-through conveyor belt method; in which fresh baked goods are placed on one end of the machine, and comes out sliced via the opposite end.

230v, 3ph, 50 hz

Varies
Production rates vary based on cutting speed, product type, and product size.

HGS 1/1 D – Single Blade Model

• L/W/H Dimensions: 68.11 x 29.53 x 59.05 in.
• Weight: 419 lbs.
• Max Passage Width: 15.75 in.
• Max Passage Height: 3.94 in.

HGS 1/3 D – Three Blade Model

• L/W/H Dimensions: 68.5 x 37 x 53.25 in.
• Weight: 540 lbs.
• Max Passage Width: 23.62 in.
• Max Passage Height: 3.94 in.

HGS 1/5 D – Five Blade Model

• L/W/H Dimensions: 77.17 x 36.61 x 53.15 in.
• Weight: 628 lbs.
• Max Passage Width: 23.62 in.
• Max Passage Height: 3.94 in.
