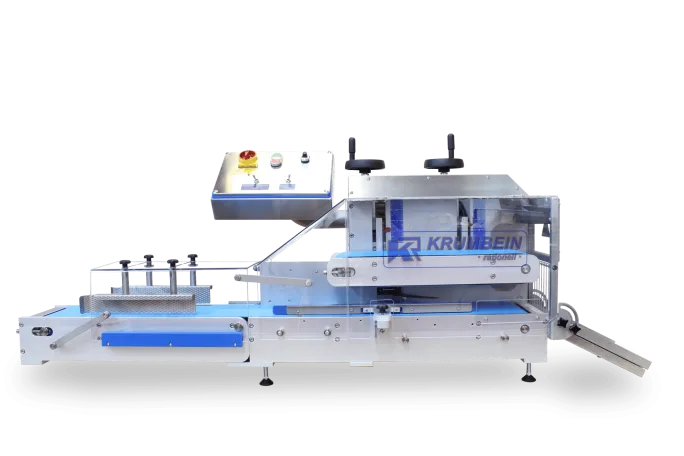

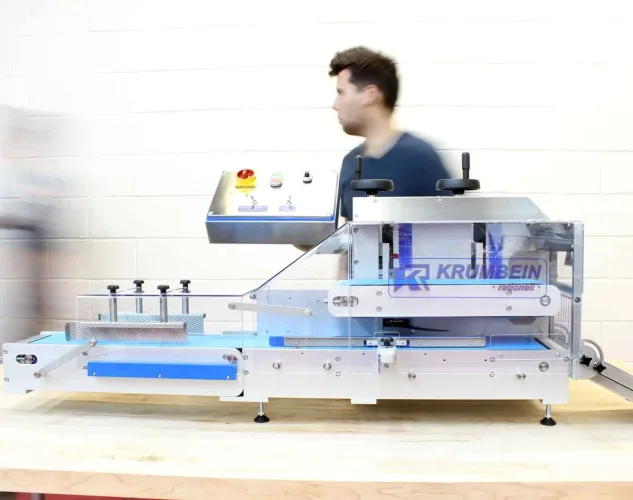

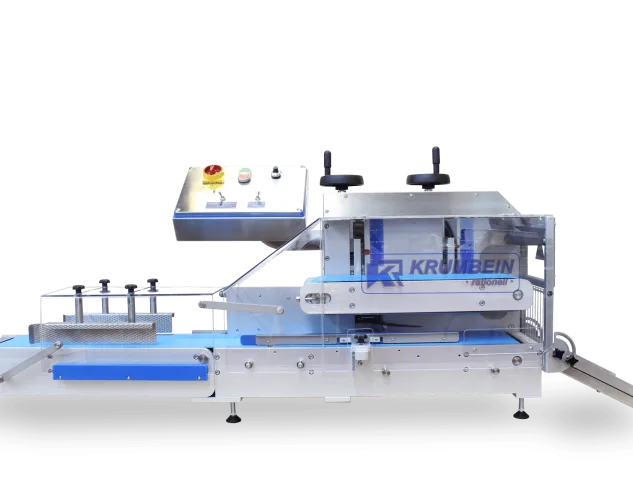

KRUMBEIN | BBS-VE Hinge Cut Tabletop Slicer Hinge-Style Cuts

The KRUMBEIN BBS-VE Hinge Cut horizontal tabletop slicer includes the following standard features:

✓ Gentle Slicing
Achieved via synchronization of the upper and lower belts.

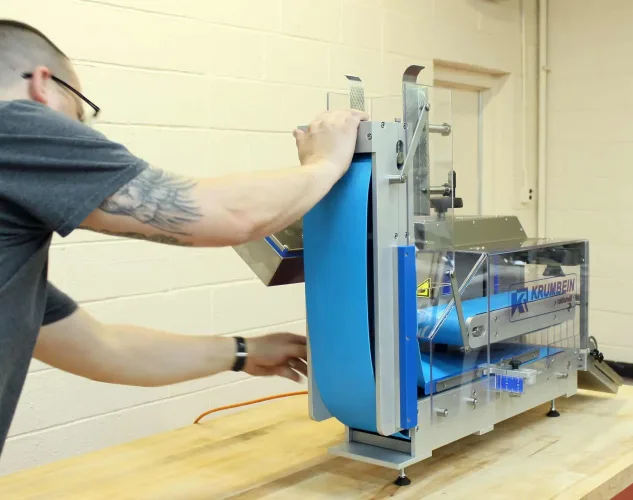

✓ Compact Design
Conveyor belt is able to fold to conserve space when not in use.

✓ KR Double Blade System
Designed to slice fresh baked products via a reciprocating motion, providing a perfect cut every time.

✓ Safety Guards
The slicing area is enclosed in a clear protective casing for both safe operation and visibility.

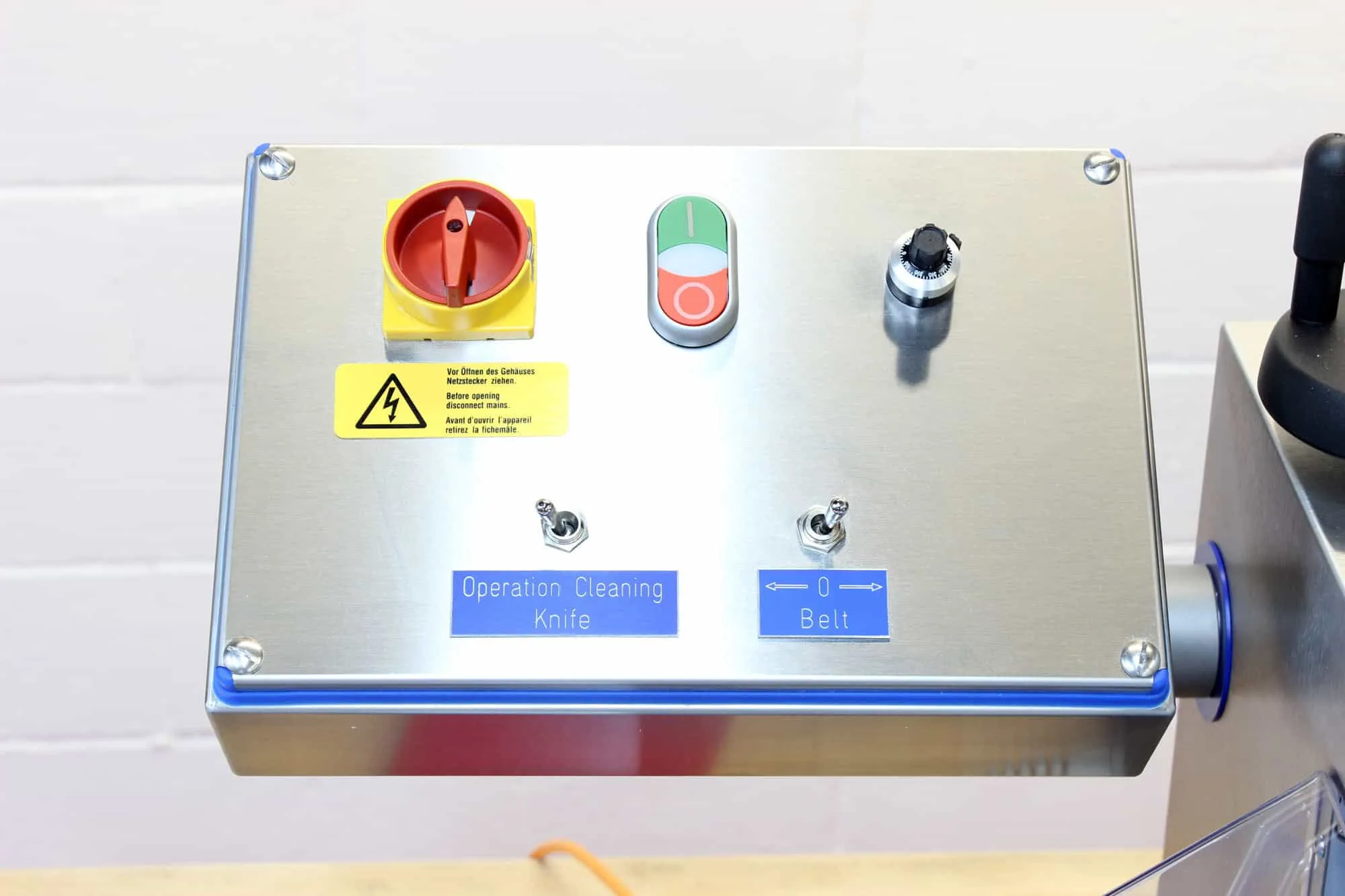

✓ Variable Controls
Individually controllable cut speed, cut depth, blade height, and belt height settings.

✓ Complete & Hinge Cuts
Perform both complete and hinge cuts by controlling the blade depth.

The KRUMBEIN BBS-VE hinge cut horizontal tabletop slicer offers the following available options:

✚ BBS-B VE Model
Perfect for pretzels and performing complete cuts on wider products.

✚ Splitting Device
Designed to separate the sliced halves of products processed through the BBS-VE and BBS-B VE.

✚ Wave Top Belt
Designed for baked goods with variable heights, ensures stability by providing extra grip on the product being sliced.

Operation procedures for the KRUMBEIN BBS-VE horizontal hinge cut tabletop slicer is as follows:

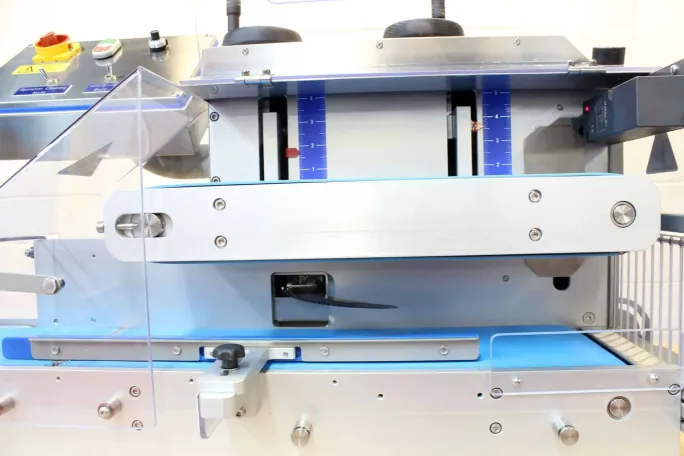

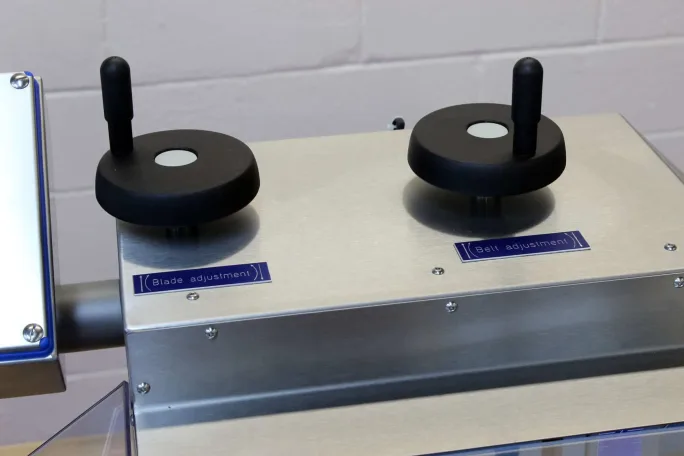

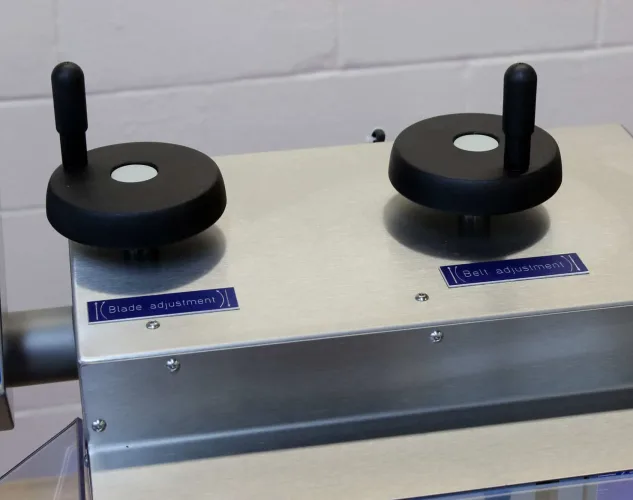

Adjustable Blade Height
Hand wheel controlled, blade height is indicated via the blade height scale.

Adjustable Upper Belt
Hand wheel controlled, upper belt height is indicated via the upper belt height scale.

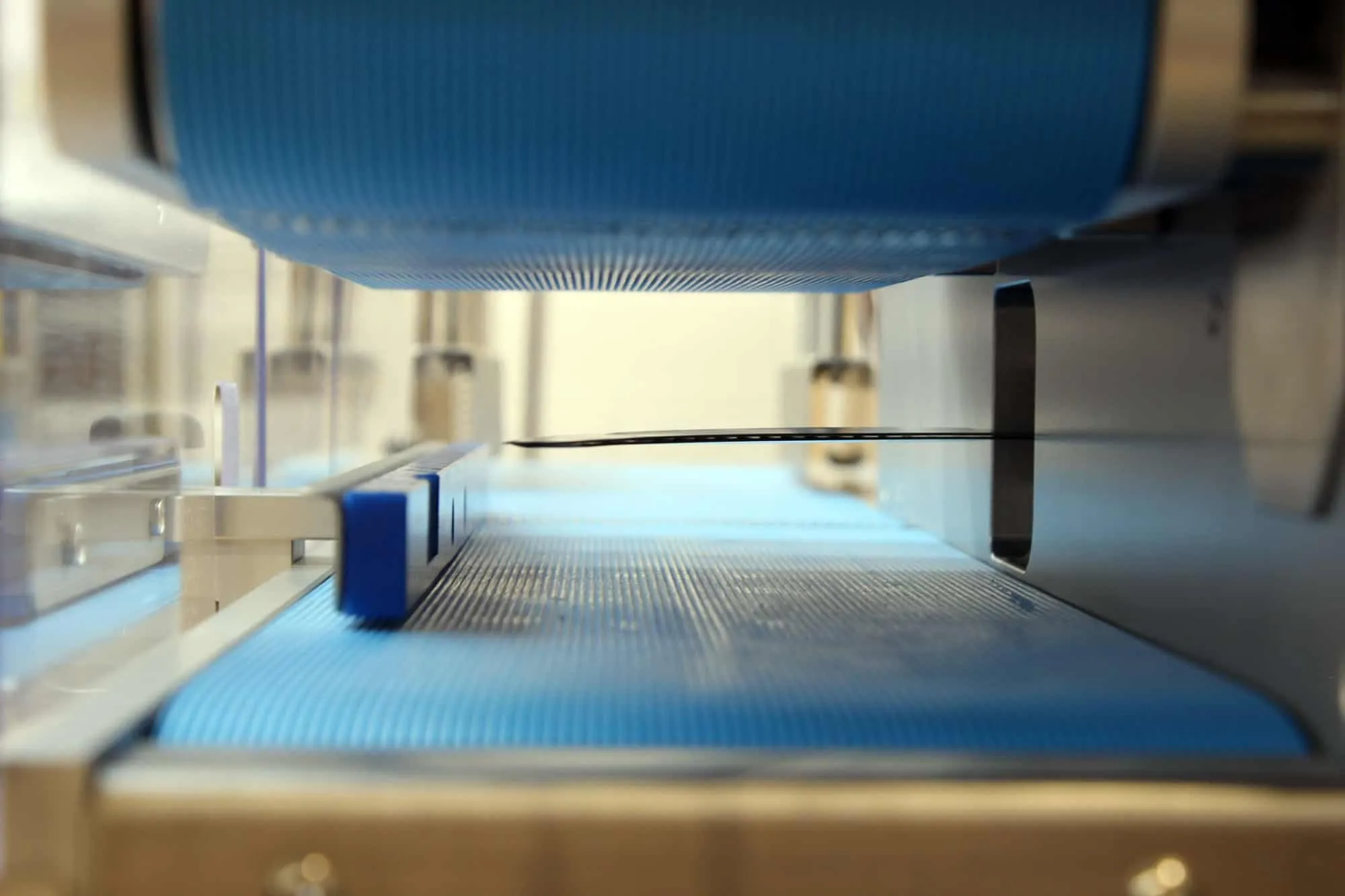

Conveyor Feeding
Slicing is executed via a put-through conveyor belt method; in which fresh baked goods are placed on one end of the machine, and comes out sliced via the opposite end.

110v, 1ph, 50 hz

Varies
Production rates vary based on cutting speed, product type, and product size.

BBS-VE – Complete & Hinge Cut

• L/W/H Park Position: 29.92 x 18.5 x 29.13 in.
• L/W/H Work Position: 47.24 x 18.5 x 21.65 in.
• Weight: 121.25 lbs.
• Max Passage Width: 5.51 in.
• Max Passage Height: 3.54 in.
• Blade Height Position: .20 – 2.36 in.
• Maximum Cutting Depth
  • Complete Cut: 3.94 in.
  • Hinge Cut: 3.94 in.
• Blade Shape: Sickle

BBS-B VE – Complete Cut, Wide Products

• L/W/H Park Position: 29.92 x 16.93 x 29.13 in.
• L/W/H Work Position: 47.24 x 16.93 x 21.65 in.
• Weight: 121.25 lbs.
• Max Passage Width: 5.51 in.
• Max Passage Height: 3.54 in.
• Blade Height Position: .20 – 2.36 in.
• Maximum Cutting Depth
  • Complete Cut: 5.5 in.
  • Hinge Cut: N/A
• Blade Shape: Straight
