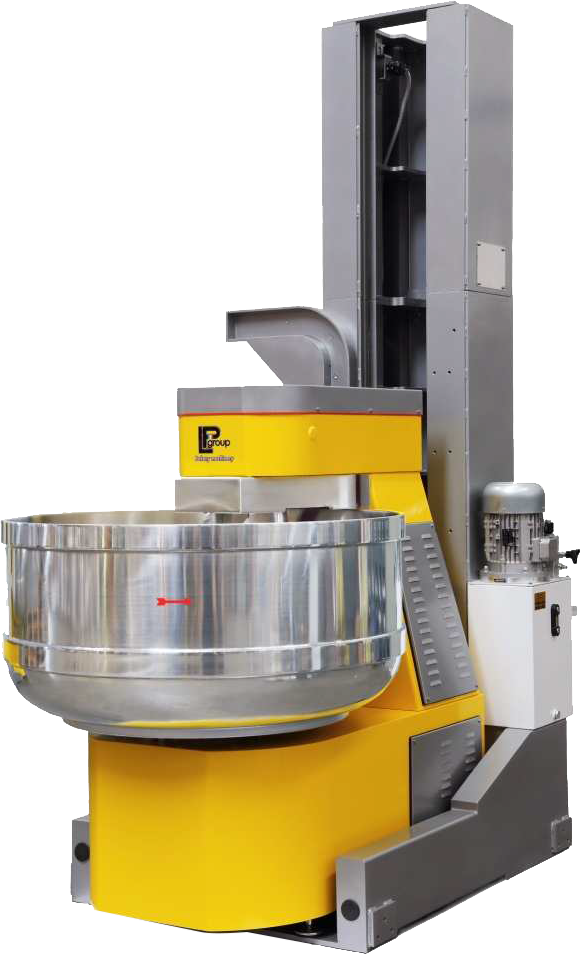

A reinforced industrial self-tilting spiral mixer built for demanding production environments, including 24/7 operations.
Partner: LP Group
Category: Mixers
Industry: Bakeries / Food Service
Production: Wholesale
LP Group focuses on engineering and manufacturing the highest quality spiral mixing equipment for bakeries around the globe. Their ISA line is a reinforced powerhouse, featuring a built in side-tilt bowl lift. This unit is designed for 24-hour production.
The LP Group ISA Reinforced, Industrial Self-Tilting Spiral Mixer includes the following standard features:
✓ Straight Breaking Bar
For enhanced durability and reliability.
✓ Dual Step Transmission
For added reliability and strength when processing stiffer doughs.
✓ Reinforced Motors
Three reinforced motors that power both the bowl, spiral, and hydraulic lift.
✓ Belt Drive Train
Belt drive transmission for added reliability and strength.
✓ Suitable for Stiff Doughs
Capable of processing dough with low hydration levels (greater than 45%).
✓ Hydraulic Lift
Hydraulic Lift which can be customized to best suit your production needs.
✓ Adjustable Discharge Height
Choose between either bench/table (1400 mm) or hopper height (1900 mm).
✓ Adjustable Discharge Direction
Choose between single side or dual side discharge. Must be specified at the time of order.
✓ 2 Speeds
Capable of running at either low or high speeds.
✓ Industrial Operation
Designed for continuous, 24-hour operation in industrial baking operations.
✓ Electromechanical Controls
Includes ability to control mixer speed, and timers. The mixer can also be used in manual or semi-automatic modes. Lastly, the control panel is located along the side of the machine for ease of access and maintenance.
✓ Bowl Rotation
Ability to reverse bowl rotation when in first speed.
✓ Motorized Bowl Guard
✓ Durable Design
Designed for durability, ease of cleaning, and overall sanitation.
✚ Custom Electrical
Custom voltages available upon request
✚ Custom Design
This includes customizable colors, silkscreens, and/or stainless-steel body.
✚ Electronic Control Panel
Electronic control panel with the ability to store up to 90 recipes.
✚ Bowl Drain
Bowl drain kit for easier cleaning
✚ Stainless Steel Bowl Cover
Stainless steel bowl cover with shock absorbers for smooth opening and closing.
✚ Quick Connect Tools
Quick connect tool configuration for easily swapping mixer attachments
✚ Additional Tools
Additional tools include peel, 8-type spiral, and whisk attachments
| ISA 300 - 1 | ISA 300 - 2 | ISA 400 - 1 | ISA 400 - 2 | |
|---|---|---|---|---|
| Voltage | 208V | 208V | 208V | 208V |
| Bowl Power | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW |
| Spiral Power* | 11/18 kW | 11/18 kW | 16/24 kW | 16/24 kW |
| Hydraulic Power | 1.5 kW | 1.5 kW | 4 kW | 4 kW |
| *Spiral Power indicated in both first and second speed options. |
| ISA 300 - 1 | ISA 300 - 2 | ISA 400 - 1 | ISA 400 - 2 | |
|---|---|---|---|---|
| Dough Capacity | ||||
| Maximum Dough Capacity | 300 kg | 661 lb | 300 kg | 661 lb | 400 kg | 881 lb | 400 kg | 881 lb |
| Minimum Dough Capacity | 30 kg | 67 lb | 30 kg | 67 lb | 40 kg | 89 lb | 40 kg | 89 lb |
| Bowl & Flour Capacity | ||||
| Bowl Capacity | 430 L | 113 gal. | 430 L | 113 gal. | 600 L | 158 gal. | 600 L | 158 gal. |
| Maximum Flour Capacity | 186 kg | 410 lb | 186 kg | 410 lb | 248 kg | 546 lb | 248 kg | 546 lb |
| ISA 300 - 1 | ISA 300 - 2 | ISA 400 - 1 | ISA 400 - 2 | |
|---|---|---|---|---|

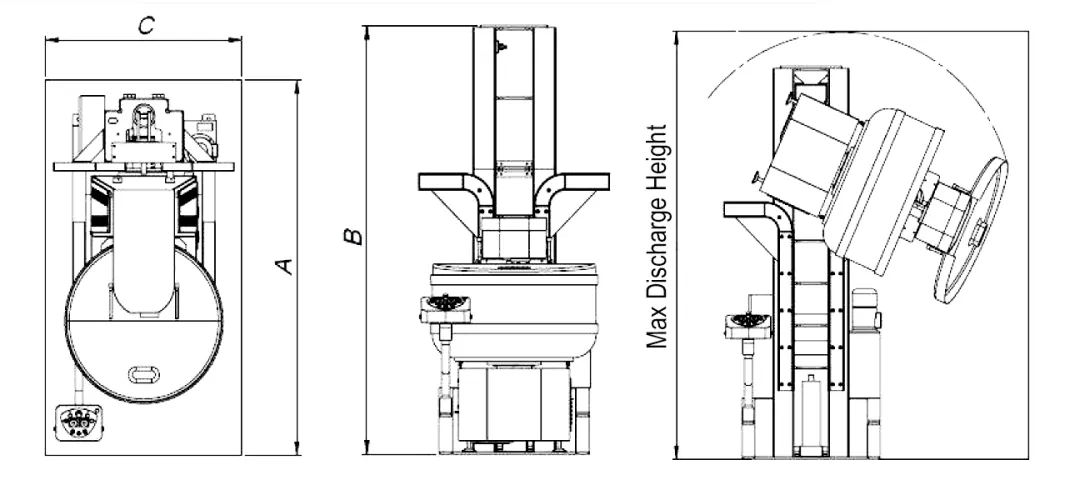

| Standard Dimensions | ||||
| Standard Dimensions (C x A x B) | 55.51 x 110.25 x 139" | 55.51 x 110.25 x 139" | 55.51 x 110.25 x 139" | 55.51 x 110.25 x 139" |
| 141 x 280 x 353 cm | 141 x 280 x 353 cm | 141 x 280 x 353 cm | 141 x 280 x 353 cm | |
| Max. Height (Tilted) | 149.75" (380 cm) | 149.75" (380 cm) | 149.75" (380 cm) | 149.75" (380 cm) |
| Net Weight | 5512 lb (2500 kg) | 5843 lb (2650 kg) | 5953 lb (2700 kg) | 6284 lb (2850 kg) |
| Shipping Dimensions | ||||
| Shipping Dimensions (L x W x H) | 99 x 83 x 90" | 99 x 83 x 90" | 99 x 83 x 90" | 99 x 83 x 90" |
| 250 x 210 x 227 cm | 250 x 210 x 227 cm | 250 x 210 x 227 cm | 250 x 210 x 227 cm | |
| Shipping Weight | 6394 lb (2900 kg) | 6394 lb (2900 kg) | 6835 lb (3100 kg) | 6835 lb (3100 kg) |
