Colbake DPB Series Intermediate Proofer Colbake SPT Series Intermediate Proofer Colbake SPV Series Intermediate Proofer Colbake | Intermediate Proofer Systems

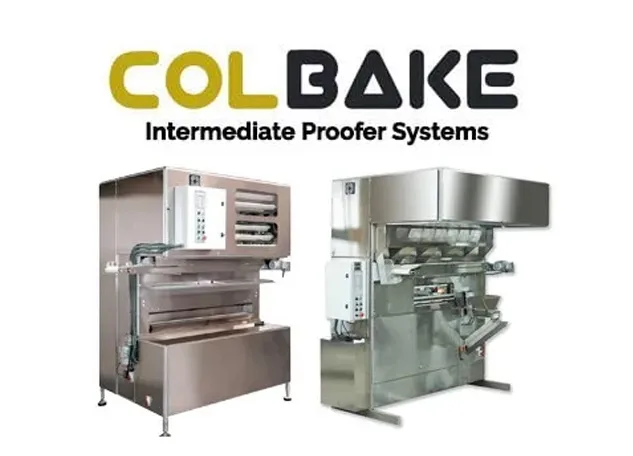

Colbake | Intermediate Proofer Systems

Static and dynamic proofers that can accommodate various products and production capacities

The Colbake Intermediate Proofer System is highly customizable to your bread production environment. We are proud to offer a wide range of both static and dynamic proofers that can accomodate various products and production capacities.

FEATURES

Colbake Intermediate Proofer Systems include the following standard features:

✓ Variable Capacities
Proofing systems capable of processing up to 600 pieces.

✓ Variable Weights
Proofing systems that can support a maximum individual product weight of up to 53 oz | 1,500 g.

✓ Variable Proofing Times
Proofing systems capable of processing 20, 30, and 40 pieces/minute.

✓ Dynamic & Static Solutions Available
Proofing systems that can be configured as a pocket based (dynamic) or tray based (static) solution.

✓ Durable Construction
Stainless steel finish.

✓ Improved Production Flow
This system can easily integrate with complete bread production systems, including dividers and moulders.

✓ Loading Options
Choose between manual and/or automatic loading solutions.

✓ Overload Protection
Designed to protect both the electrical and mechanical systems.

AVAILABLE OPTIONS

The Colbake Proofer Systems offer the following available options:

✚ Access Panel
This provides easy access to the internal proofing cabinet. It also includes a viewing window to monitor product. For added safety, the system will not operate with the access panel open.

✚ Conveyorized Loading
The proofer system can be loaded via a conveyor belt solution that ensures adequate spacing between dough pieces.

✚ Humidity Control
This provides an ability to increase the internal humidity within the proofing cabinet. This includes a digital control that displays both the current humidity and setpoint.

✚ Temperature Control
This provides an ability to control the internal temperature of the proofer cabinet. This includes a digital display that shows the current temperature as well as the setpoint. This feature also comes with a removable bottom cover designed to prevent heat from escaping.

✚ Shared Power System
Extra power socket for connecting additional machines. This socket can be located where it is most convenient for your production flow. This is extremely useful for connecting dividers or moulding stations to use in conjunction with this proofer system.

✚ Touchscreen Controls
Intuitive control over all available parameters via a 7 inch color display.

✚ Stainless Steel Frame
The internal structure can also be made entirely of stainless steel.

ELECTRICAL SPECS

220v, 3ph, 60hz, 3 amps
Standard configuration

PRODUCTION RATE

Variable
Depending on product type and production needs. See “Proofing Specifications” below for additional details.

PROOFING SPECIFICATIONS

Below are proofing specifications for Colbake Intermediate Proofer Systems.

Proofing Specifications
Series Model Capacity Max. Wt. / Piece Proofing TIme
20 pieces/minute 30 pieces/minute 40 pieces/minute
DP Series DP210 210 pieces 21 oz | 600 g 10.5 min 7 min 5 min
DP300 300 pieces 21 oz | 600 g 15 min 10 min 7.5 min
DP380 380 pieces 21 oz | 600 g 19 min 12.5 min 9.5 min
DPB Series DPB160 160 pieces 53 oz | 1,500 g 8 min 5.5 min 4 min
DPB190 190 pieces 53 oz | 1,500 g 9.5 min 6.5 min 5 min
DPB274 274 pieces 53 oz | 1,500 g 14 min 9.5 min 7 min
DPB400 400 pieces 53 oz | 1,500 g 20 min 13.5 min 10 min
DPB600 600 pieces 53 oz | 1,500 g 30 min 20 min 15 min
SPM Series SPM80 80 trays 4 oz | 120 g
SPT Series SPT138 138 pieces 28 oz | 800 g 7 min 4.5 min 3.5 min
SPT177 177 pieces 28 oz | 800 g 9 min 6 min 4.5 min
SPT243 243 pieces 28 oz | 800 g 12 min 8 min 6 min
SPT276 276 pieces 28 oz | 800 g 14 min 9 min 7 min
SPT348 348 pieces 28 oz | 800 g 17.5 min 11.5 min 9 min
SPT78-2R 78 pieces 28 oz | 800 g 17.5 min 11.5 min 9 min
SPV Series SPV40 40 trays
(200-280 pieces)
42 oz | 1,200 g 14 min 9.5 min 7 min
SPV56 56 trays
(280-392 pieces)
42 oz | 1,200 g 19.5 min 13 min 10 min
SPV65 65 trays
(325-455 pieces)
42 oz | 1,200 g 23 min 15 min 11.5 min
SPV75 75 trays
(375-525 pieces)
42 oz | 1,200 g 26 min 17.5 min 13 min
Intermediate Proofers
Table Plugin
STANDARD DIMENSIONS

The standard dimensions of Colbake Intermediate Proofer Systems are as follows:

Standard Dimensions
Model Length Width Height
DP Series 76 1/4 in | 1,933 mm 31 1/4 in | 790 mm 80 1/2 in | 2045 mm
DPB Series 103 3/4 in | 2,630 mm 64 in | 1,627 mm 101 1/4 | 2,569 mm
SPM Series 51 in | 1,293 mm 42 in | 1,068 mm 81 1/2 in | 2095 mm
SPT Series 100 1/2 in | 2,553 mm 31 in | 785 mm 82 1/2 in | 2095 mm
SPV Series 105 3/4 in | 2,685 mm 39 3/4 in | 1,010 mm 97 3/4 in | 2,481 mm
Intermediate Proofers
Table Plugin
SHIPPING WEIGHT & DIMENSIONS

The shipping weight and dimensions of the Colbake Intermediate Proofer Systems are as follows:

Shipping Dimensions
Model Length Width Height Weight
DP Series 77 in | 1,950 mm 35 1/2 in | 900 mm 80 3/4 in | 2,050 mm 1,543 lb | 700 kg
DPB Series 102 1/2 in | 2,600 mm 64 1/2 in | 1,630 mm 102 1/2 in | 2,600 mm 1,874 lb | 850 kg
SPM Series 51 1/4 in | 1,300 mm 42 1/2 in | 1,080 mm 82 in | 2080 mm 1,654 lb | 750 kg
SPT Series 100 1/2- 100 1/4 in | 2,550 - 2,800 mm 31 in | 780 mm 82 3/4 in | 2,100 mm 1,874 lb | 850 kg
SPV Series 98 1/2 in | 2,500 mm 41 1/4 in | 1050 mm 98 1/2 in | 2,500 mm 2,205 lb | 1,000 kg
Intermediate Proofers
Table Plugin
